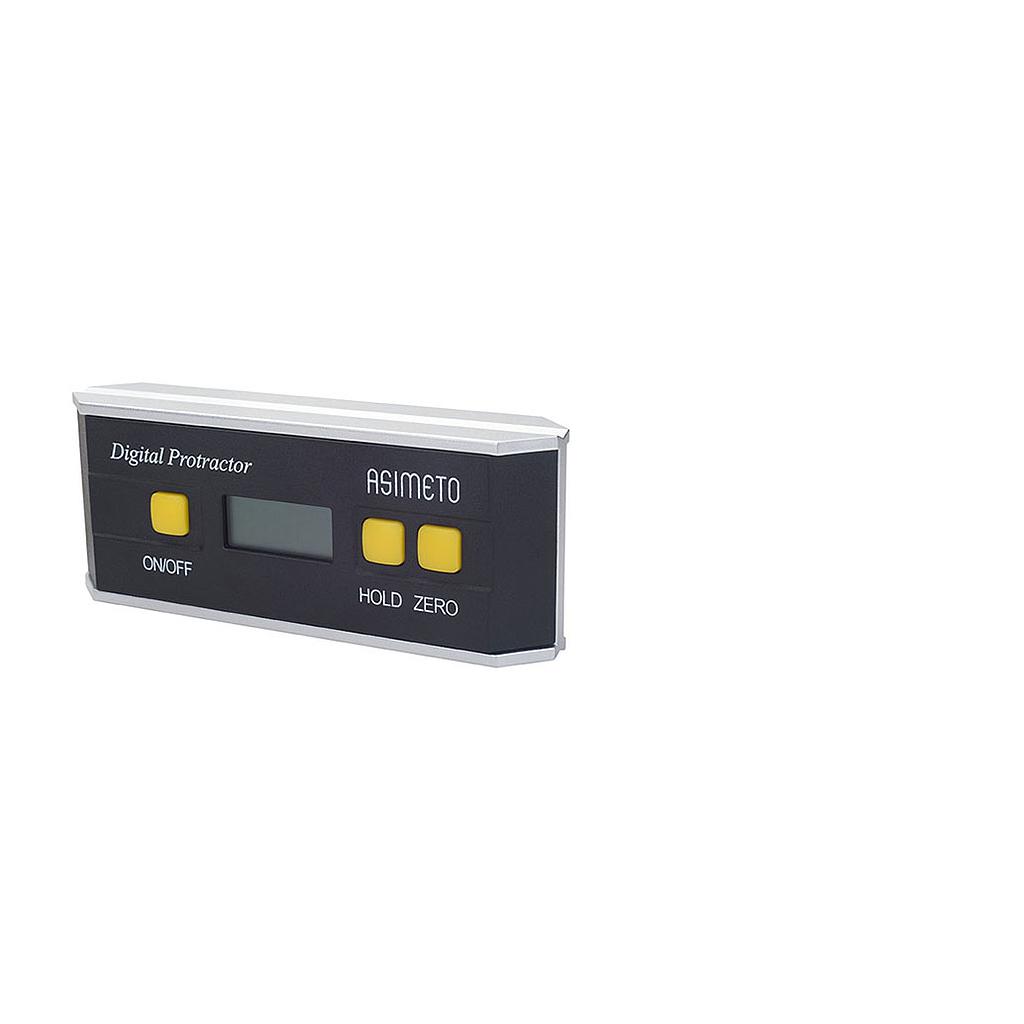

Digital Protractors (Level Type) Asimeto 490-16-2 (with Magnet on base) (360°, ±0.1°)

Size: 152x63.8x60mm

Range: 360°

Accuracy: ±0.1°

Resolution: 0.1°

Operating Temp. Range: 23°F - 122°F -5°C - 50°C

This protractor provides an immediate digital reading of any angle in a full circle with 0°-90°-0°-90°-0° readings. The machined Aluminum frame is rigid and light with a precise platform that allows the sensor and its microprocessor circuit to provide high accuracy throughout the entire 360° range

Four 90° quadrants for display purposes

Calibrates in minutes without any special fixtures

Hold button for freezing a reading in an unreadable position

ABS/ZERO button allows 2 measuring modes, standard and alternate reference

V-grooves on top and bottom for use on curved surfaces

Automatic On/Off to maximize battery life

Angle displayed upright regardless of protractor position

Item #490-16-2 comes with magnet on base, which is helpful for fixing

Weight: 343g

Power: 3V, Lithium cell
