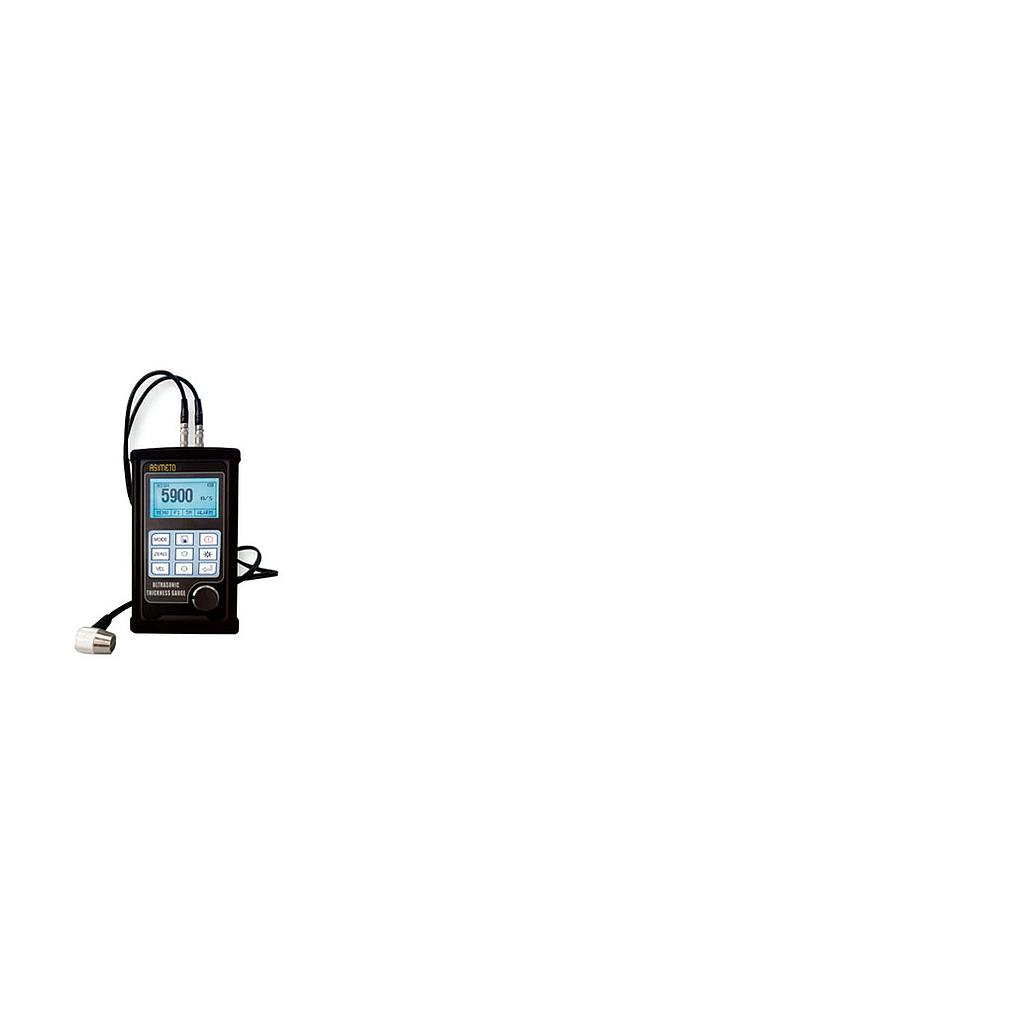

Ultrasonic Thickness Gauge Asimeto 506-20-0

Range: 0.75 - 300mm (0.03" - 15.7")

Probes: 5M

Resolution: 0.01 mm / 0.1mm

Black metal back shell.

Display: 128 x 64 LCD with LED backlight.

Measuring range: 0.75mm - 300.0mm (0.03" - 15.7")

Display resolution: 0.01mm (smaller than 99.99mm) / 0.1mm (larger than 100mm)

Sound velocity range: 1000m/s - 9999m/s (0.039 - 0.394in/us)

Accuracy (H is measuring thickness):

± 0.05mm (H < 10mm)

± (0.5%H+0.05) mm (10mm < H < 100mm)

± (0.6%H) mm (H > 100mm)

Data memory: 5 files (up to 100 values for each file) of stored values

Units: Metric/Imperial unit selectable.
