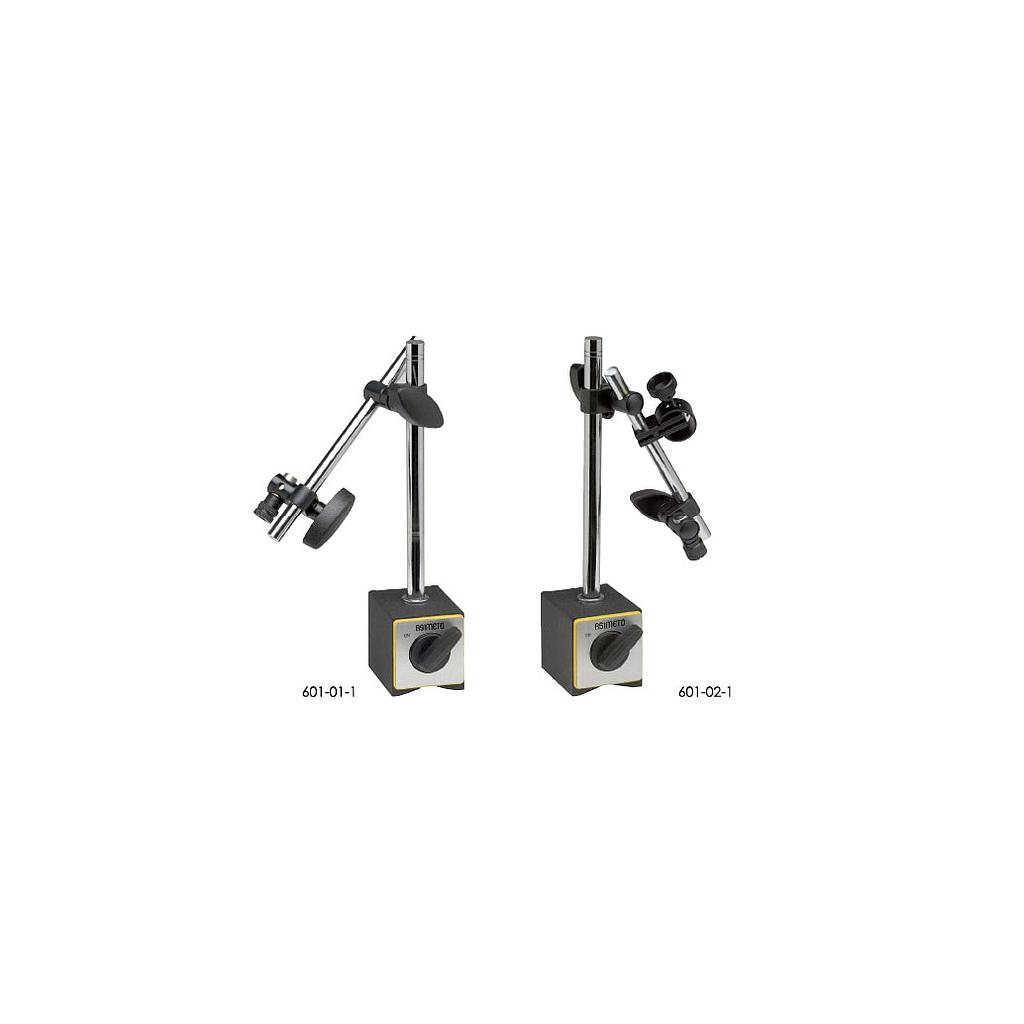

Magnetic Bases Asimeto 601-02-0 (80 kgf, 60x50x55mm)

Base: 60x50x55mm

Notes: With a fine adjustment

Dia. of Hole: Ø8mm

Sub Pole (D2): Ø10mm

Sub Pole (L2): 150mm

Magnetic Power: 80 kgf

Main Stem (D1): Ø12mm

Main Stem (L1): 176mm

Accepts test indicators with dovetail clamping mechanism

Dial gauges can be held by the 3/8" or 8mm diameter stem or by the lug backing plate

The rotary knob switches natural magnet On or Off

The precision surfaces and the bottom V are securely fastened to the ferrous work piece or machine table when the rotary knob is in the on position

#601-02-0/1 with fine adjustment
