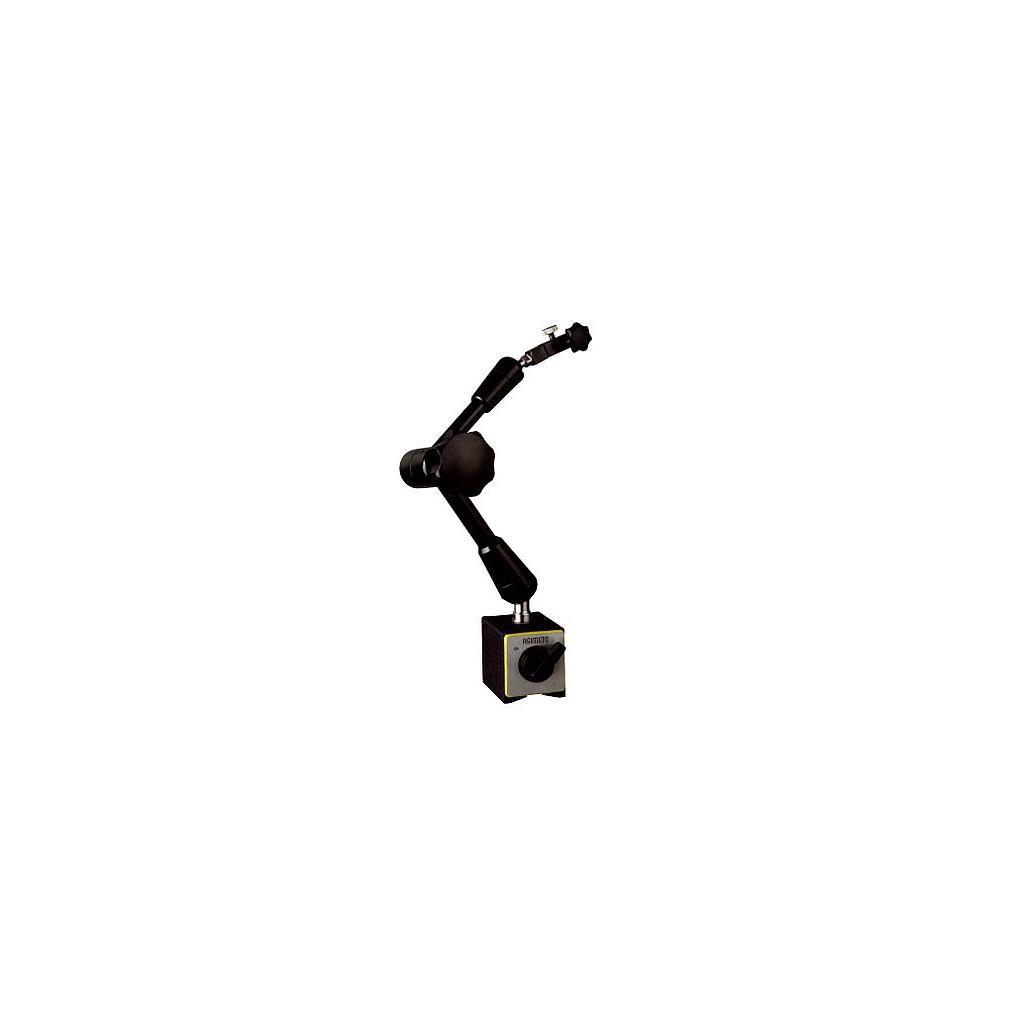

Hydraulic Magnetic Bases Asimeto 603-01-0 (80 kgf)

Slot: 6.5mm

Arm (L): 337mm

Arm (L1): 120mm

Arm (L2): 116mm

Arm (L3): 76mm

Dia. of Hole: Φ3/8" Φ8mm

Magnetic Power: 80 kgf

Base (L x W x H): 60x50x55mm

Accepts test indicators with dovetail clamping mechanism.

Dial gauges can be held by the 3/8" or 8mm diameter stem or by the lug backing plate.

The rotary knob switches natural magnet On or Off.

The precision surfaces and the bottom V are securely fastened to the ferrous workpiece or machine table when the rotary knob is in the on position.
