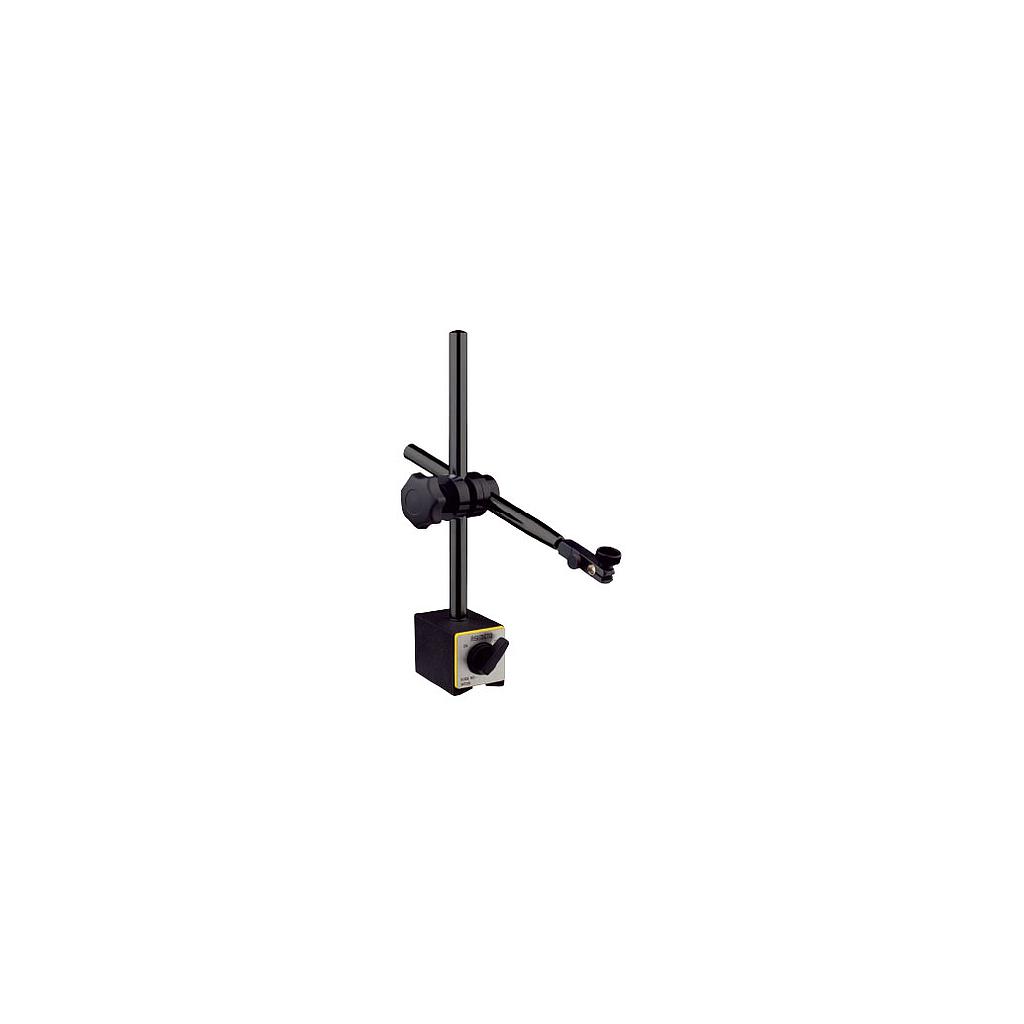

Forced Locking Magnetic Bases Asimeto 604-01-0 (80 kgf, 60x50x55mm)

Base: 60x50x55mm

Slot: 6.5mm

Dia. of hole: Ø3/8” / Ø8mm

Sub Pole (D2): Ø10mm

Sub Pole (L2): 160mm

Magnetic Power: 80 kgf

Main Stem (D1): Ø12mm

Main Stem (L1): 180mm

Accepts test indicators with dovetail clamping mechanism.

Dial gauges can be held by the 3/8” or 8mm diameter stem or by the lug backing plate.

New design, holding more solid and reliable, more stable performance, higher accuracy.

The rotary knob switches natural magnet on or off.

The precision surfaces and the bottom V are securely fastened to the ferrous workpiece or machine table when the rotary knob is in the on position.
