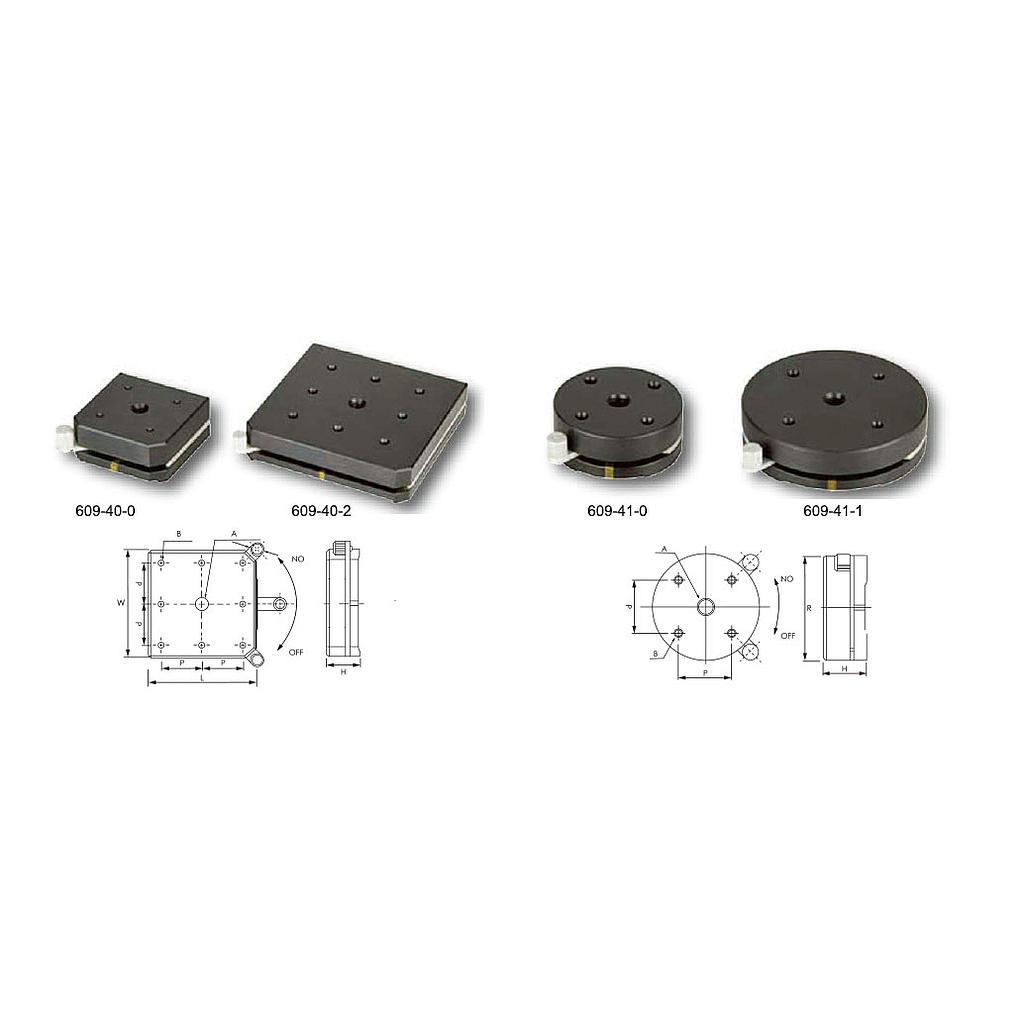

Thin Type Magnetic Holder Asimeto 609-40-1

Thread (A): M8

Thread (B): 8-M4

Holding Power: 20 kg

Dimension (W x L x H x P x R): 65mm x 65mm x 20mm x 25mm x -

Suitable as a base for securing jigs and measuring equipment on an iron surface plate or machine table and as a temporary base for laser and optical measurement

Since these bases are of switchover type permanent magnetic bases, they are recommended for applications that require fine adjustment and accuracy

Simple ON/ OFF operation with the lever

Thin and powerful magnetic force

Dry specification
