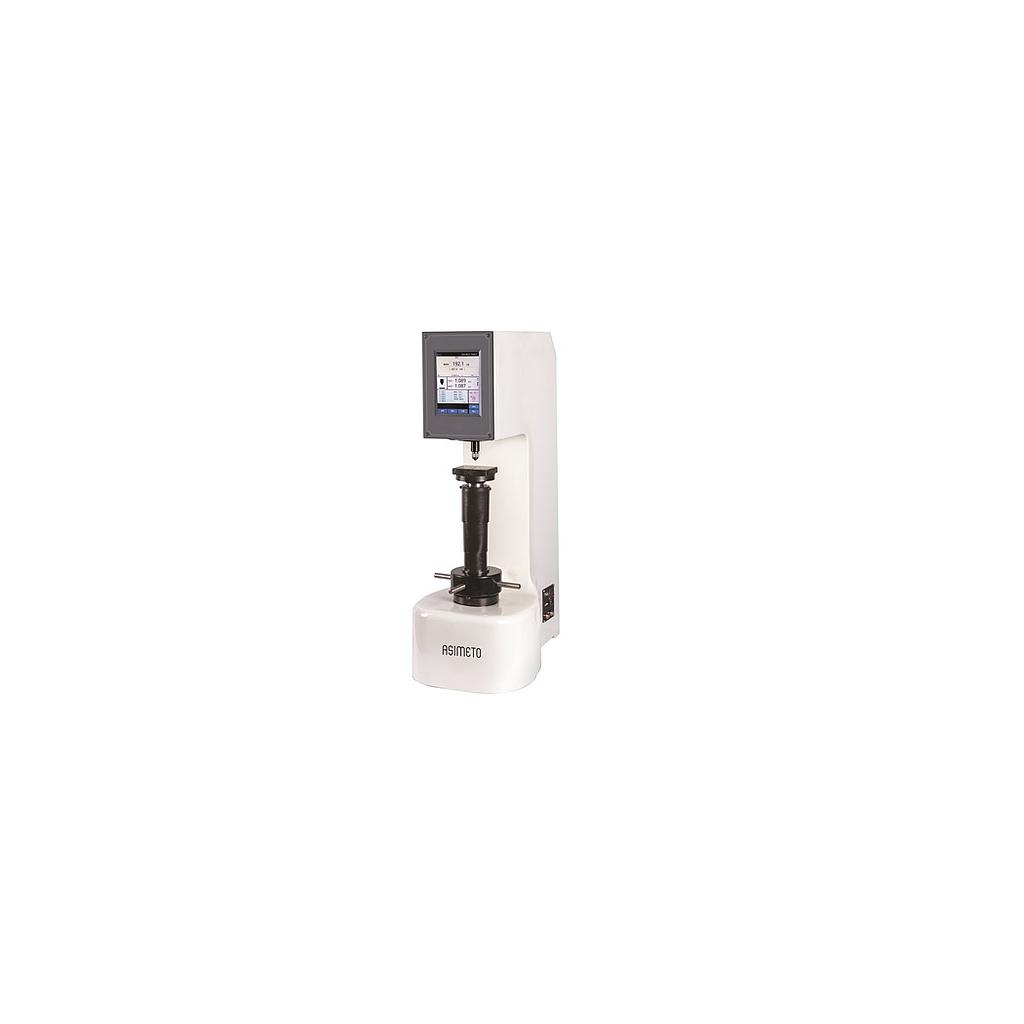

Brinell Hardness Tester Asimeto 640-10-7 (8-650HBW)

Range: 8-650HBW

Test Force: 980.7, 1225.9, 1838.8, 2451.8, 4903.5, 7355.3, 9807, 14710.5, 29421N (100, 125, 187.5, 250, 500, 750, 1000, 1500, 1500, 3000kgf)

Depth Throat: 150mm

Max. Height of Test Piece: 280mm

Used for determining the brinell hardness of various metals.

A "V" anvil is supplied for testing round work pieces.

Readings provided to a minimum resolution 0.5HR.

Mechanical models are designed with reversing switch.

Digital models provide automatic operation reducing manual testing errors.

The digital model has a large LCD screen.
