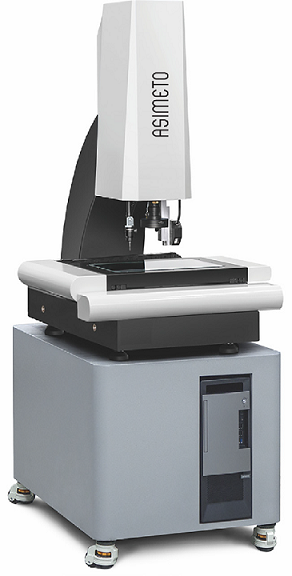

CNC 2D Vision Measuring System (Economic Type) Asimeto 647-04-1E

Camera: 1.3M Pixel Digital Camera

Weight: 380kg

Model No.: CVS4030E

Zoom Lens**: 6.5X High Resolution Detented Zoom Lens Magnification: 0.7X - 4.5X Video Magnification: 20X - 200X

Field of View: 8.1 ~ 1.3mm (Depends on Camera and Lens)

Repeatability: ±2µm

Z-Axis Travel: 200mm

Base and Pillar: High Accuracy Marble

X/Y-Axis Travel: 400 x 300mm

Dimension (WxDxH): 960 x 710 x 1075mm

X/Y-Axis Accuracy*: ≤3.0 + L/200 (µm)

Working Environment: Temperature: 20°C±2°C Change range < 2°C/hr | Humidity: 30% ~ 80% | Vibration <0.002g, <15Hz

X/Y/Z-Axis Scale Resolution: .0005mm

Illumination System (Software): Surface: 5-ring 8-division 0 ~ 255 grade continue adjustable | Contour: LED Parallel Illumination | LED Laser Navigation Lights

High precision marble base and mechanical structure provide great stability and rigidity.

Can set auto measurement, and process batch measurement with high efficiency.

6.5X Detented zoom lens, magnification 0.7X - 4.5X.

1.3M pixel digital camera.

Programmable 5-ring 8-division LED surface illumination.

Contour parallel LED illumination.

0.5μm linear scale.

Joystick control.

RationalVue software.
