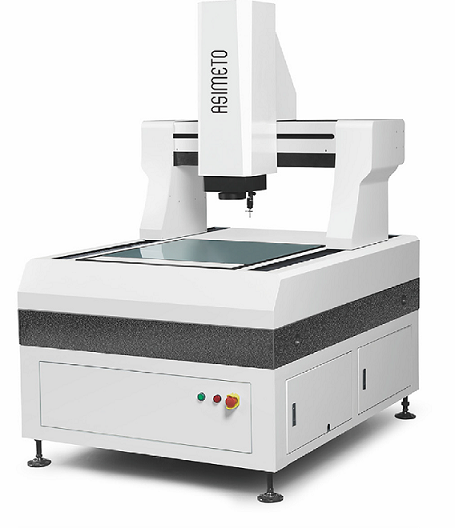

CNC 2D Vision Measuring System (Gantry Type) Asimeto 647-08-2

Camera: 2.0M Pixel Digital Camera

Weight: 1500kg

Model No.: CVS8060B

Zoom Lens**: Auto zoom lens with co-axial light

Field of View: 8.1 ~ 1.3mm (Depends on Camera and Lens)

Repeatability: ±2µm

Z-Axis Travel: 200mm

Base and Pillar: High Accuracy Marble

X/Y-Axis Travel: 800 x 600mm

Dimension (WxDxH): 1700 x 1280 x 1750mm

X/Y-Axis Accuracy*: ≤2+L/200(μm)

Working Environment: Temperature: 20°C±2°C Change range < 2°C/hr | Humidity: 30% ~ 80% | Vibration <0.002g, <15Hz

X/Y/Z-Axis Scale Resolution: High Precision Linear Scale, .0001mm

Illumination (Software Adjustment): Surface: 5-ring 8-division 0 ~ 255 grade continue adjustable | Contour: LED Parallel Illumination | LED Laser Navigation Lights

High precision marble base and mechanical structure provide great stability and rigidity.

Fully auto close loop control, auto measurement.

Can set auto measurement, and process batch measurement with high efficiency.

Auto zoom lens with co-axial light.

2.0M pixel digital camera.

Programmable 5-ring 8-division LED surface illumination.

Contour parallel LED illumination.

RSF / Renishaw 0.1μm linear scale.

Joystick control.

RationalVue software.
