Pin Gauge Sets Asimeto 697-01-0

Range: .011" - .060" x 0.001 step

Surface: Bright Finish

Accuracy: +.0002" -0"

Qty Per Set: 50

For quick and accurate measurements. Measure hole sizes, slot widths, calculate distances between holes, use as GO / NO-GO gaging, etc.

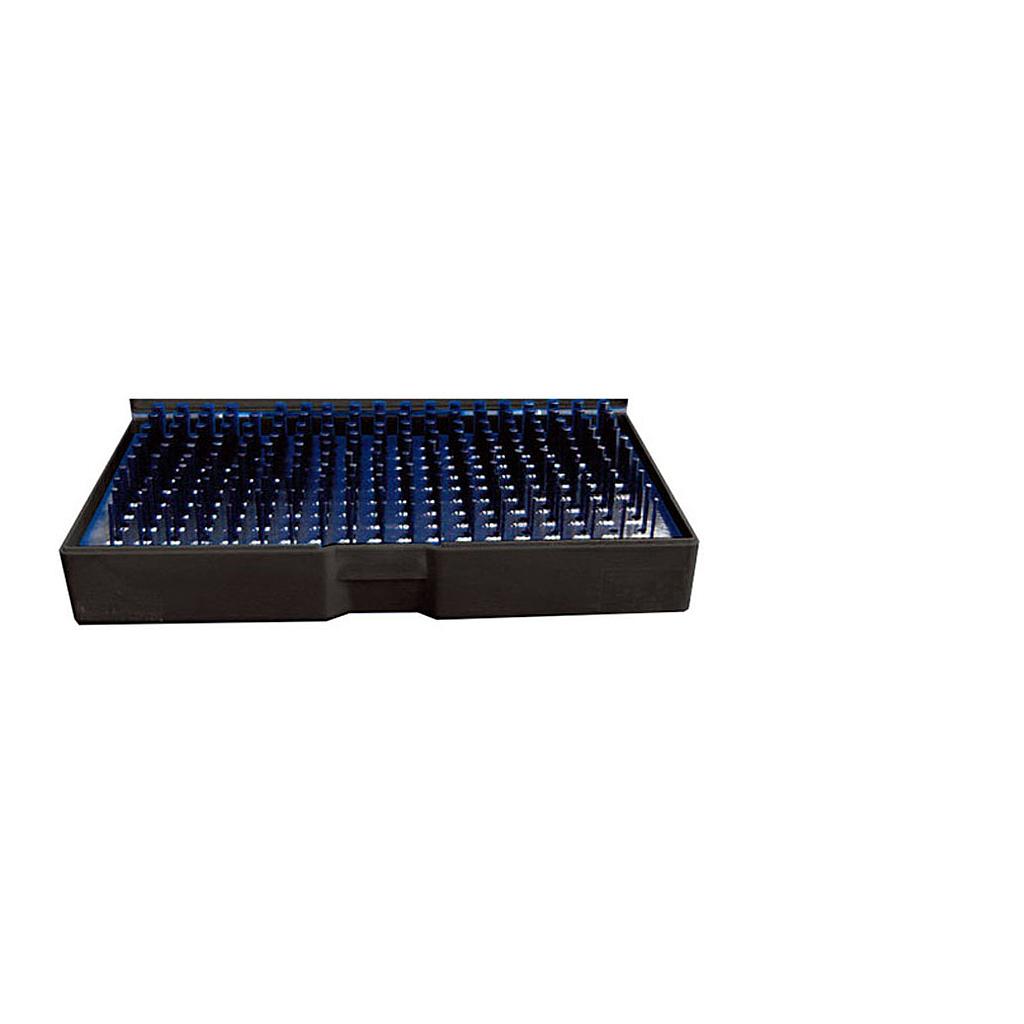

Furnished in attractive molded plastic case.

Class ZZ guaranteed to .0002" / 0.005 mm tolerance limit.

Inspected with equipment which has been calibrated and is traceable to NIST.

Marked with size and direction of tolerance on gauge over .060" / 1.5 mm.

Hardened drill rod RC 60-62, 2 inches long.

10 micron finish or better.

Certificate of accuracy included.
