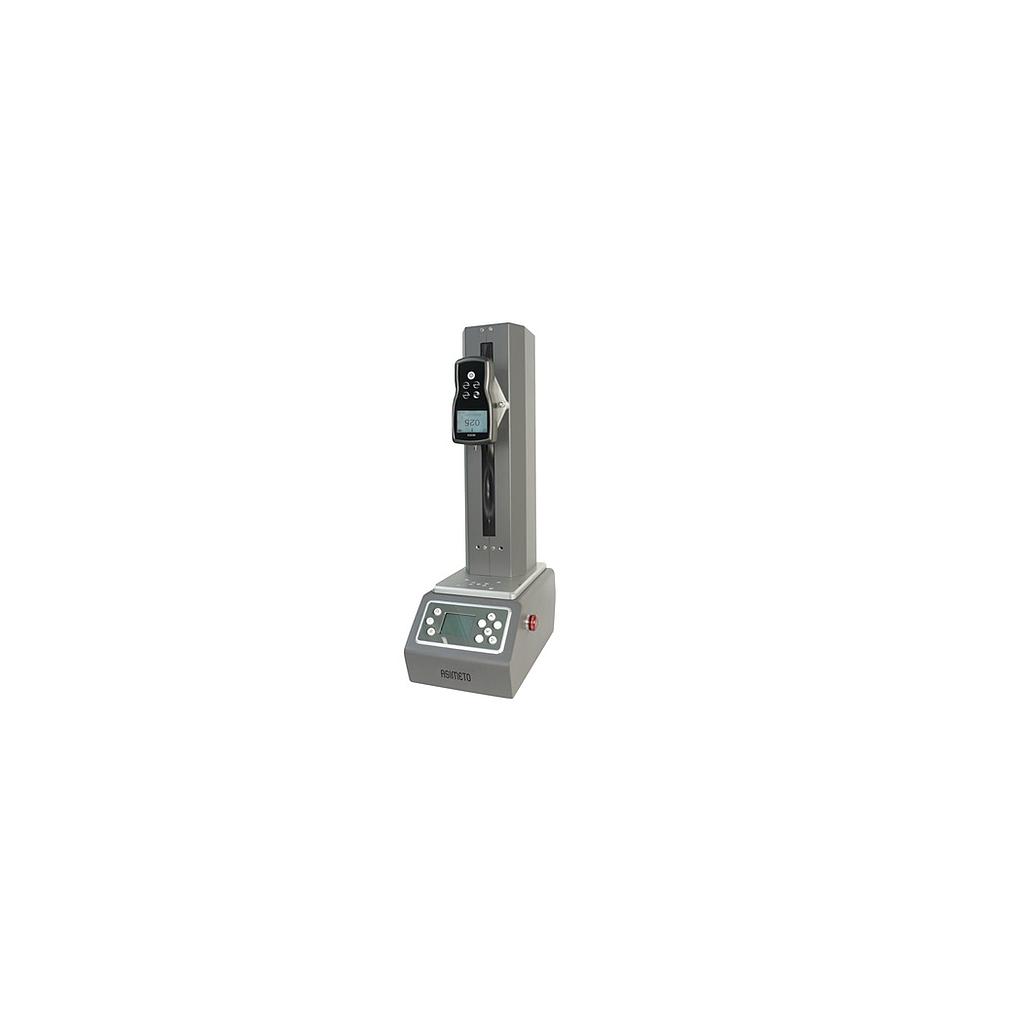

Motorized Test Stand Asimeto 701-39-1

Stroke: 220mm

Outputs: USB-B RS232

Capacity: 650N

Displacement: Resolution: 0.01mm Accuracy: ±0.2 mm/min

Power supply: AC100-240V, 1A

Cycle programs: 3-Stages cycle Displacement-Based cycle (D-Cycle) Force-Based cycle (F-Cycle)

Operation mode: Manual, Cycle, Demo, Locating

Protection mode: Position limit Force limit (connect to force gauge) Rotor locked Power current

Speed (adjustable range): 30 - 720 mm/min

Motorized stand.

Max. testing force capacities is 650N.

3-stages program cycle.

Teching program.

Force measurement data integration.

USB connection.

Multi-levels protection functions.

Suitable for with product 701-30-X series.
