Nguồn điện: 220±10V, 50HZ, 10A
Đèn: Đèn huỳnh quang 8×40W
Tuổi thọ đèn: 2000 giờ
Nguồn sáng: UVA-340 hoặc UVB-313
Phạm vi bức xạ:
UVA-340 0.3W / m2-1.1W / m2
UVB-313 0.3W / m2-1.35W / m2
Phạm vi nhiệt độ BPT: nhiệt độ môi trường + 5 °C -80 °C
Phạm vi độ ẩm: 15% -95%
Khu vực phơi sáng: 5175 cm2 / 828 in2
Dung tích mẫu: 48 giá đỡ mẫu kích thước 150mm × 1375mm
Kích thước bên ngoài: 1400mm×500mm×1375mm (Dài × Rộng × Cao)
Introduction

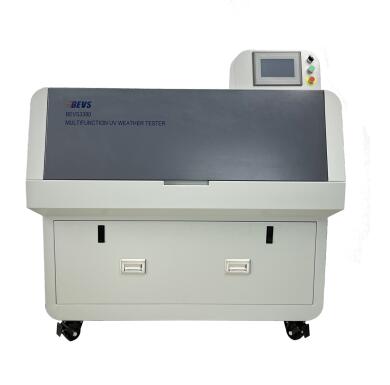

BEVS Multifunction UV Weather Tester is designed to accurately simulate a variety of outdoor environmental conditions. This state-of-the-art unit features UV fluorescent lamps and a precise irradiance control system, enabling it to replicate sunlight, rain, condensation, darkness, high humidity, and drying at high temperatures. The upgraded temperature and humidity control system ensures even distribution of irradiance, temperature, and humidity throughout the chamber, thanks to its thoughtfully arranged layout. This comprehensive UV tester is ideal for evaluating durability of materials such as plastics, coatings, automotive parts and textiles.
Main Function
Irradiation Function
Florescent lamps emit stable levels of UV with low failure rates. Their normal service life is 2000 hours. UVA-340 lamps and UVB-313 lamps are available to simulate the harmful UV in sunlight.
UVA-340 lamps realistically reproduce sunlight in the short-wave UV region, commonly used in photodegradation testing for outdoor products.
UVB-313 lamps give a simulation of short-wave UV, most of which is below 300nm. They are mainly used for accelerated durability testing of materials and qualitative comparison of more than two types of materials.
Condensation Function
By heating the water in the base sink, water vapor is emitted into the air. When encountering air with a lower temperature, the water vapor continuously condenses into tiny water droplets on the sample surface, simulating the phenomenon of condensation on the sample.
Water spray Function
Nozzles continuously spray deionized water onto the front side of specimens in order to simulate rain. By exposing materials to drastic temperature changes and rainfall, they are tested for water resistance, thermal shock resistance and mechanical resistance.
* Light and water spray can operate at the same time.
Temperature and humidity control Function
With the air and humidity control system, testing panel surface is maintained at the set temperature and the humidity inside the test chamber is maintained at the set range. With the light/darkness, the chamber can simulate different conditions, such as high humidity in darkness, dryness at high temperatures, and dryness.
Features
Condensation is controlled independently
Allow to save 20 testing methods, each including 10 procedures
Automatic control and real-time display of temperature and humidity
Water spray is controlled independently and the spray volume is adjustable
lrradiance calibrated value is automatically transmitted without manual input
