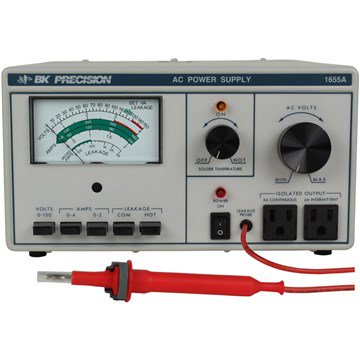

Nguồn AC BK Precision 1655A
Hãng sản xuất: BKPRECISION Model: 1655A - Liên hệ
Tham khảo dịch vụ Hiệu chuẩn-Kiểm định và Sửa chữa
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222) 730.39.68
TP. Hải Phòng: (0225) 730.03.89
TP. HCM: (028) 38.119.636
Đồng Nai: 0932.160.940
Specifications | |
BK 1655A | |
Voltage Adjustment Range | 0-150 VAC with input at 120 VAC |
Output Isolation | Leakage less than 0.1 mA (25 0C, 50% RH) |
Current Ranges | 0-3 A |
Maximum Current (Isolated) | 3A continuous, 4A intermittent (0-130V) |
Peak Current (inrush) | 30A max. (inrush limited to one cycle at 30A) |
Voltage/Current Sensing | Sine wave average, calibrated in RMS |
Meter Scale | 0-240VAC / 0-480VAC (voltage set at 120) |
Leakage | 0-5000 uA (expanded in 100-500 uA portion, compressed to 5 mA full scale) |
Metering | 4 1/2 multicolor scales, overrange protected |
Typical Meter Accuracy | +-5% of full scale (volts and current) +-5% at 500 uA (leakage) |
Soldering Iron Temp. Control | 70 - 99% of power line (100W max.) |
AC Input | 120 VAC ±10%, 60 Hz* |
Dimensions (HxWxD) | 10.5x5.7x12" (267x145x305 mm) |
Weight | 22 lbs. (10 kg) |
