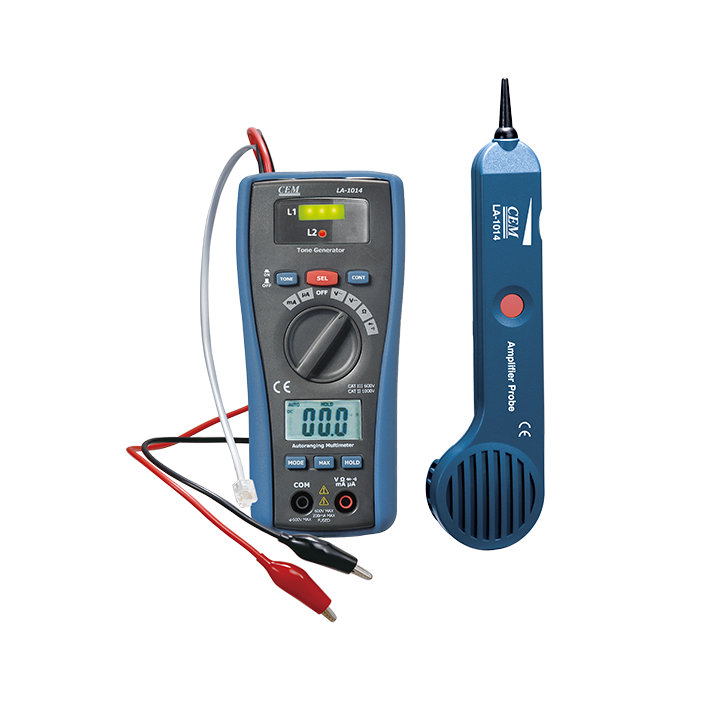

Đồng hồ vạn năng + Kiểm tra mạng LAN CEM LA-1014 (600V; 200mA; 20MΩ)

Chức năng: Dải đo tối đa - Độ chính xác cơ bản

Điện áp DC: 600V  ;  ±0.5%

Điện áp AC: 600V  ;  ±1.2%

Dòng điện DC: 200mA  ;  ±1.5%

Dòng điện AC: 200mA  ;  ±2.0%

Điện trở: 20MΩ  ;  ±0.8%

Kiểm tra tính liên tục: Phát ra tiếng bíp nếu dưới 100Ω

Kích thước (H x W x D): 162mm x 74.5mm x 44mm

Trọng lượng: 308g


Phụ kiện: Pin 9V & Cáp đo

Chi tiết

Datasheet


Features

Insulated inductive probe tip prevents shorting conductors

Tests include wire trace, continuity test, clear/busy/ringing line test and tip/ring identification

Alligator clips for non-terminated cables and modular connectors for direct connections to telephone and internet wiring

Selectable continuous or variable tone generation

Built-in speaker on probe with sensitivity control

RJ45 and RJ11 modular connectors
