Thiết bị đo điện trở tiếp xúc Chauvin Arnoux C.A 6292 (200A)

- Dòng điện kiểm tra : lập trình từ 20 tới 200 A
- Điện trở: 0.1 μΩ tới 2 mΩ; 2 tới 200 mΩ; 200 mΩ tới 1 Ω
- Độ phân giải: 0.1 μΩ(200 A max); 10 μΩ(25 A max à 200 mΩ); 1 mΩ( 5 A max à 1 Ω)
- Điện áp ngoài: 100 VAC: 4.2 V @ 200 A / 220 VAC: 8.6 V @ 200 A
- Điên trở tải max: 00 VAC: 20 mΩ@ 200 A / 220 VAC: 42 mΩ@ 200 A
- Phương pháp đo: 4 kiểu Kelvin
- Chế độ kiểm tra: thông thường hoặc BSG (nối đất)
- Thời lượng kiểm tra: điều chỉnh từ 5 tới 120 s @200 A / không giới hạn dưới 100 A
- Bộ nhớ: 8000 kết quả đo
- Giao tiếp: USB 2.0
- Phần mềm: DataView®
- Nguồn: 100 to 240 VAC – 50/60 Hz
- Kích thước: 502 x 394 x 190 mm
- Trọng lượng: khoảng 13 kg
- Nhiệt độ: -10 °C tới +70 °C
- Độ ẩm: 95% RH
- Cấp bảo vệ: IP54
- An toàn điện: IEC 61010-1

Bộ thiết bị tiêu chuẩn: 1 hộp chứa: 1 bộ 2 dây đo Kelvin dài 6 m (đỏ/đen) với kẹp 200 A Kelvin, 1 dây tiếp đất (xanh lá) dài 3 m với 1 kẹp cá sấu, 1 cáp USB 1.5 m, 1 cầu chì T 15 A 250V đã gắn trong thiết bị, 1 dây nguồn (chuẩn Euro), 1 đĩa CD hướng dẫn sử dụng 5 ngôn ngữ, 1 đĩa CD phần mềm DataView.

Các phụ kiện / linh kiện thay thế ( mua thêm):
- 1 bộ 2 dây đo Kelvin dài 15 m (đỏ/đen) với kẹp nối có thể điều chỉnh  P01295487
- 1 kẹp đo dòng MR6292 cho C.A 6292  P01120470
- 1 bộ 2 dây đo Kelvin dài 6 m (đỏ/đen) với kẹp nối có thể điều chỉnh  P01295486
- 1 dây tiếp đất (xanh lá) với kẹp cá sấu  P01295488
- 1 bộ 5 cầu chì: T 15A 250V 5x20 mm  P01297101
- 1 cáp USB-A USB-B dài 1.5 m  P01295293

Chi tiết




datasheet



user guider
catalog vietnamese
catalog english

Advantages

● Resolution: 0.1 μΩ

● Test current adjustable up to 200 A

● Automatic mode: 50 A, 100 A, 150 A and 200 A

● Unlimited test duration up to 100 A

●Safe measurements: Both Sides Grounded (BSG mode)

● Internal cooling system

● Storage of up to 8,000 measurements

● Site-proof casing for difficult environments

Description

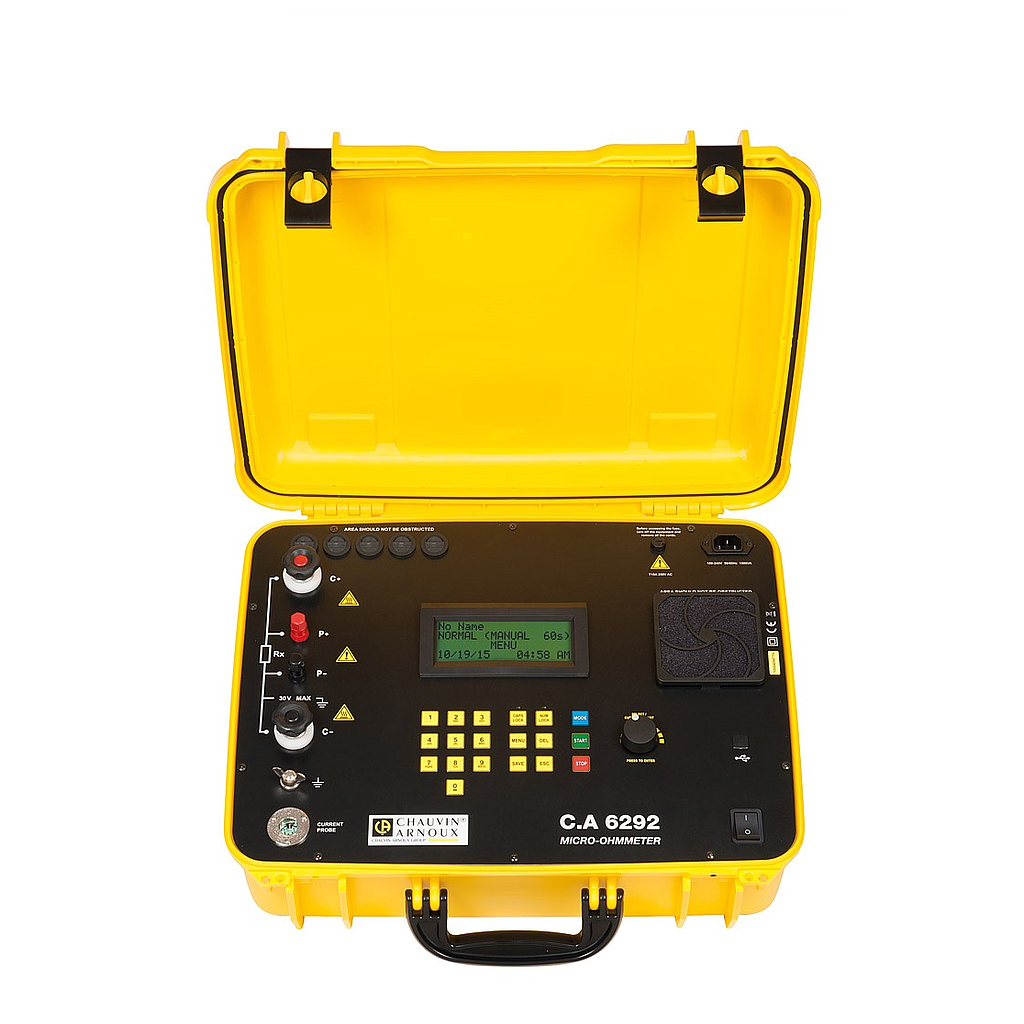

The C.A 6292 is supplied in a site-proof casing with clearly-identified connection terminals to limit the risk of errors while also allowing quick connection of your measurement leads.

The measurement results are displayed instantaneously on the LCD screen, which is backlit for easy reading. The C.A 6292 can be configured using the rotary knob on the instrument or via a PC with the USB link.

The C.A 6292 can be used to measure in total safety for both people and equipment. The BSG method allows you to maintain the earthing on both sides of the object tested in order to remove any risk due to electromagnetic induction phenomena. In this mode, the optional MR 6292 clamp can be used for current measurements up to 50 ADC.

The C.A 6292 can store in memory up to 8,000 measurement results.

Accurate measurements

According to Kelvin's principle, the four-wire measurement method can be used to eliminate errors due to the resistances of the test leads and the contact resistances. In this way, the C.A 6292 offers excellent accuracy (around 1% of the measurement result) for low resistance measurements thanks to its 0.1 μΩ resolution.

The C.A 6292 is suitable for a wide range of applications:

·  Contact resistance tests on MV/HV cells

·  Verification of contact quality on circuit-breakers, switches, relays, etc.

·  Resistance testing on busbars, cables, windings, etc.

·  Checking of continuity on rails, axles or welds

·  Testing of surface condition and metallization

·  Cut-off device tests

Software

The DataView software platform can be used to configure the instrument, process and analyse the measurement results, export saved files and create reports.
