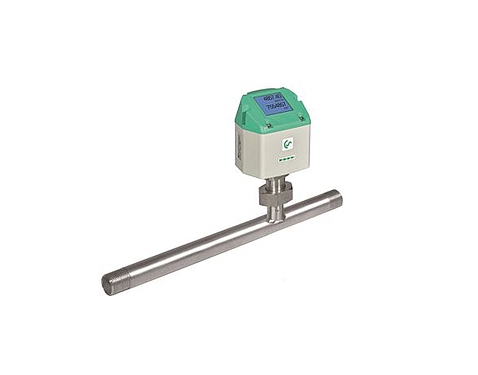

Máy đo lưu lượng khối lượng cho khí nén và khí gases Cs-instruments VA 520

  • Hãng sản xuất: Cs-instruments
    Model: VA 520
    Xuất xứ: Đức
    • Yêu cầu báo giá Yêu cầu báo giá
  • Liên hệ
  • Gọi để có giá tốt

    Hanoi: (024) 35.381.269

    Đà Nẵng: (0236) 3 74 77 11

    TP.HCM: (028) 38.119.636

  • Cam kết chất lượng
  • Bảo hành chính hãng
  • Giao hàng tận nơi
  • Đơn giản hóa giao dịch

Hãng sản xuất: Cs-instrumentsModel: VA 520
Xuất xứ: Đức

Đo lường: Lưu lượng và tiêu thụ
Các đơn vị có thể lựa chọn m³ / h, m³ / phút, l / phút, l / s, ft / phút, cfm, m / s, kg / h, kg / phút, kg / s
Cảm biến: Pt45, Pt1000
Phương tiện đo: Không khí, khí
Nhiệt độ hoạt động: -30 ... 100 ° C ống thăm dò
                              -20 ... 70 ° C trong nhà
Áp suất hoạt động: lên đến 16 bar, phiên bản đặc biệt PN 40 (40 bar)
Nguồn điện: 18 đến 36 VDC
Điện năng tiêu thụ: tối đa 5W
Ngõ ra số: RS 485 (Modbus RTU)
Ngõ ra analog: 4 ... 20 mA
Khả năng điều chỉnh giá trị với các phím hiển thị
Độ chính xác: ± 1,5% m.v., ± 0,3% f. S.*
Màn hình: TFT 1.8 Độ phân giải 220 x 176 (chọn mua thêm)
Chất liệu: Thép không gỉ 1.4301 / 1.4404

Chú ý: Khác hàng đọc và chọn mua thêm kích thước và phụ kiện phù hợp trước khi đặt hàng

VA 520 - Flow sensor with integrated measuring section -

Screw-in thread

Stainless steel: 1,4301

Order no.

Price in €

VA520 Flow meter with integrated 1/4", DN 8 measuring section 1,4301

0695 0520

780,00 €

VA520 Flow meter with integrated 1/2", DN 15 measuring section 1,4301

0695 0521

780,00 €

VA520 Flow meter with integrated 3/4", DN 20 measuring section 1,4301

0695 0522

819,00 €

VA520 Flow meter with integrated 1", DN 25 measuring section 1,4301

0695 0523

841,00 €

VA520 Flow meter with integrated 1 1/4", DN 32 measuring section 1,4301

0695 0526

1.011,00 €

VA520 Flow meter with integrated 1 1/2", DN 40 measuring section 1,4301

0695 0524

1.011,00 €

VA520 Flow meter with integrated 2", DN 50 measuring section 1,4301

0695 0525

1.065,00 €

Stainless steel: 1,4571





VA520 Flow meter with integrated 1/4", DN 8 measuring section 1,4571

0695 1520

833,00 €

VA520 Flow meter with integrated 1/2", DN 15 measuring section 1,4571

0695 1521

833,00 €

VA520 Flow meter with integrated 3/4", DN 20 measuring section 1,4571

0695 1522

874,00 €

VA520 Flow meter with integrated 1", DN 25 measuring section 1,4571

0695 1523

899,00 €

VA520 Flow meter with integrated 1 1/4", DN 32 measuring section 1,4571

0695 1526

1.093,00 €

VA520 Flow meter with integrated 1 1/2", DN 40 measuring section 1,4571

0695 1524

1.093,00 €

VA520 Flow meter with integrated 2", DN 50 measuring section 1,4571

0695 1525

1.186,00 €

Outer thread measuring section of VA 520 with stainless steel 1,4571





NPT outer thread

C2

81,00 €







Option signal output / bus connection:





Standard



0,00 €

M-Bus (pulse output not available)

Z695 5004

169,00 €







Gas type:





Compressed air



0,00 €

Nitrogen (N2)



0,00 €

Argon (Ar)



100,00 €

Carbon dioxide (CO2)



100,00 €

Oxygen (O2)



100,00 €

Nitrous oxide (N2O)



100,00 €

Natural gas (NG)



100,00 €

Helium (He)



100,00 €

Propane (C3H8)



100,00 €

Methane (CH4)



100,00 €

Biogas (Methane 50% : CO2 50%)



100,00 €

Hydrogen (H2)



100,00 €

Further gas



169,00 €

Gas mixture



169,00 €







Calibration:





Real gas calibration in the selected gas type



231,00 €







Maximum pressure:





40 bar (High-pressure)

Z695 0411

199,00 €

Surface condition:





Special cleaning - oil and grease free (e.g. for oxygen)

0699 4005

163,00 €

LABS free and silicone free version incl.cleaning oil and grease free

0699 4007

242,00 €







Special measuring range:





Special measuring range freely selectable

Z695 4006

107,00 €







Accuracy class:





± 1 % of measured value (precision)

Z695 5005

203,00 €







Connection cables:





Connection cable for VA/FA, 5 m, with M12 plug

0553 0104

47,00 €

Connection cable for VA/FA, 10 m, with M12 plug

0553 0105

68,00 €

Connection cable for VA/FA, 20 m, with M12 plug

0553 0120

103,00 €

Cable for alarm-/pulse output for dew point sensors/ flow sensors with M12 plug, lenght 5 m

0553 0106

47,00 €

Cable for alarm-/pulse output for dew point sensors/ flow sensors with M12 plug, lenght 10 m

0553 0107

68,00 €

CS Service software incl. PC connection set for FA/VA 5xx sensors

0554 2007

295,00 €

Closing cap for measuring section in aluminium

0190 0001

17,00 €

Closing cap for measuring section stainless steel 1.4404

0190 0002

34,00 €

M12 – T plug for VA 500/520 to connect several sensors

020000823

26,00 €







Mains units:





Mains unit in wall housing for maximum 2 sensors of the series VA/FA 5xx,

100-240 V, 23 VA, 50-60 Hz / 24 VDC, 0.35 A

0554 0110

337,00 €

AC adapter plug 100-240 V AC/ 24 V for VA/FA 500/520

0554 0109

80,00 €

External display, chart recorder DS 400

0500 4000

675,00 €







Calibration and adjustment:





Real gas calibration for oxygen (O2) with cleaning - free of oil and grease

3200 0010

479,00 €

5 point precision calibration of new instrument with ISO certificate

3200 0001

405,00 €

Real gas calibration

3200 0015

331,00 €

Real gas calibration for mixed gases

on request

VA 520 - Flow sensor with integrated measuring section - weld

neck flange



Order no.

Price in €

VA520 Flow meter with integrated DN 15 measuring section with flange

0695 2521

941,00 €

VA520 Flow meter with integrated DN 20 measuring section with flange

0695 2522

1.011,00 €

VA520 Flow meter with integrated DN 25 measuring section with flange

0695 2523

1.053,00 €

VA520 Flow meter with integrated DN 32 measuring section with flange

0695 2526

1.323,00 €

VA520 Flow meter with integrated DN 40 measuring section with flange

0695 2524

1.323,00 €

VA520 Flow meter with integrated DN 50 measuring section with flange

0695 2525

1.459,00 €

VA520 Flow meter with integrated DN 65 measuring section with flange

0695 2527

1.648,00 €

VA520 Flow meter with integrated DN 80 measuring section with flange

0695 2528

1.791,00 €







Option signal output / bus connection:





Standard



0,00 €

M-Bus (pulse output not available)

Z695 5004

169,00 €







Gas type:





Compressed air



0,00 €

Nitrogen (N2)



0,00 €

Argon (Ar)



100,00 €

Carbon dioxide (CO2)



100,00 €

Oxygen (O2)



100,00 €

Nitrous oxide (N2O)



100,00 €

Natural gas (NG)



100,00 €

Helium (He)



100,00 €

Propane (C3H8)



100,00 €

Methane (CH4)



100,00 €

Biogas (Methane 50% : CO2 50%)



100,00 €

Hydrogen (H2)



100,00 €

Further gas



169,00 €

Gas mixture



169,00 €







Calibration:





Real gas calibration in the selected gas type



231,00 €







Maximum pressure:





40 bar (High-pressure)

Z695 0411

199,00 €







Surface condition:





Special cleaning - oil and grease free (e.g. for oxygen)

0699 4005

163,00 €

LABS free and silicone free version incl.cleaning oil and grease free

0699 4007

242,00 €







Special measuring range:





Special measuring range freely selectable

Z695 4006

107,00 €







Accuracy class:





± 1 % of measured value (precision)

Z695 5005

203,00 €







Connection cables:





Connection cable for VA/FA, 5 m, with M12 plug

0553 0104

47,00 €

Connection cable for VA/FA, 10 m, with M12 plug

0553 0105

68,00 €

Connection cable for VA/FA, 20 m, with M12 plug

0553 0120

103,00 €

Cable for alarm-/pulse output for dew point sensors/ flow sensors with M12 plug, lenght 5 m

0553 0106

47,00 €

Cable for alarm-/pulse output for dew point sensors/ flow sensors with M12 plug, lenght 10 m

0553 0107

68,00 €

CS Service software incl. PC connection set for FA/VA 5xx sensors

0554 2007

295,00 €

Closing cap for measuring section in aluminium

0190 0001

17,00 €

Closing cap for measuring section stainless steel 1.4404

0190 0002

34,00 €

M12 – T plug for VA 500/520 to connect several sensors

020000823

26,00 €







Mains units:





Mains unit in wall housing for maximum 2 sensors of the series VA/FA 5xx,

100-240 V, 23 VA, 50-60 Hz / 24 VDC, 0.35 A

0554 0110

337,00 €

AC adapter plug 100-240 V AC/ 24 V for VA/FA 500/520

0554 0109

80,00 €

External display, chart recorder DS 400

0500 4000

675,00 €







Calibration and adjustment:





Real gas calibration for oxygen (O2) with cleaning - free of oil and grease

3200 0010

479,00 €

5 point precision calibration of new instrument with ISO certificate

3200 0001

405,00 €

Real gas calibration

3200 0015

331,00 €

Real gas calibration for mixed gases

on request

Chi tiết

datasheet

manual

Instruction Manual VA 5xx - Modbus RTU Slave Installation
