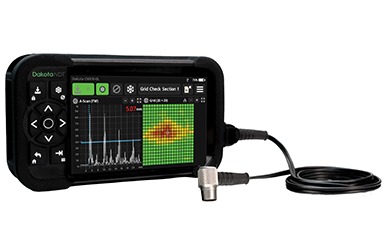

Máy đo độ dày siêu âm, ăn mòn Dakota CMX10-DL (PE: 0.63 - 914.4mm)

Part Number

Description

CMX10-DL

DakotaNDT Full Waveform Capture Corrosion & Precision Thickness Gauge
Supplied complete with:
Power Supply with UK, EU and US Adapters, Rechargeable Smart Battery Pack Li-Ion 10.8V,
3.35Ah, 36.2Wh, Ultrasonic Couplant, 120ml/4fl oz, Hand Strap (x1) with Extension Pieces (x2),
Screen Protector (x1), Transit Case, USB Cable, User Guide
Option Transduser

SPARES / ACCESSORIES

Part Number

Description

T92033669

Screen Protector, Pack of 5

T92033670

Hand Strap (including extension pieces)

T92033673

Transit Case

T92033668

USB Cable

T92033672

Rechargeable Smart Battery Pack Li-Ion 10.8V, 3.35Ah, 36.2Wh

T92033671

Power Supply with UK, EU and US Adapters

DUAL ELEMENT THICKNESS TRANSDUCERS - 'INTELLIGENT' - The transducers listed below are 'intelligent' transducers with automatic transducer recognition

Part Number

Type

Frequency

Diameter

Connector

Connection

TXC1M00EP-2

Dual Element - 'Intelligent' - Standard

1MHz

1/2"

ODU

Side

TXC5M00CP-10

Dual Element - 'Intelligent' - Hi-Damped

5MHz

1/4"

ODU

Side

TXC5M00CP-4

Dual Element - 'Intelligent' - Standard

5MHz

1/4"

ODU

Side

TXC5M00EP-10

Dual Element - 'Intelligent' - Hi-Damped

5MHz

1/2"

ODU

Side

TXC7M50BP-3

Dual Element - 'Intelligent' - Hi-Damped

7.5MHz

3/16"

ODU

Side

TXC7M50CP-4

Dual Element - 'Intelligent' - Extra Resolution

7.5MHz

1/4"

ODU

Side

DUAL ELEMENT THICKNESS TRANSDUCERS

Part Number

Type

Frequency

Diameter

Connector

Connection

T-104-0000

Dual Element - Standard

1MHz

1/2"

Potted

Side

T-102-1000

2.25MHz

1/4"

Potted

Side

T-104-1000

2.25MHz

1/2"

Potted

Side

T-101-2700

Dual Element - Hi-Damped

5MHz

3/16"

Potted

Side

T-102-2700

5MHz

1/4"

Potted

Side

T-104-2700

5MHz

1/2"

Potted

Side

T-101-3700

7.5MHz

3/16"

Potted

Side

T-102-3700

7.5MHz

1/4"

Potted

Side

SINGLE ELEMENT CONTACT TRANSDUCERS - FINGER TIP (2nd Layer Function)

Part Number

Type

Frequency

Diameter

Connector

Connection

T-4033-1855

Single Element - Finger Tip Contact

2.25MHz

3/8"

Microdot

Side

T-4023-2855

5MHz

1/4"

Microdot

Side

T-4033-2855

5MHz

3/8"

Microdot

Side

T-4023-4855

10MHz

1/4"

Microdot

Side

ANGULAR PROVE UP TRANSDUCERS - Corrosion Crack G Pit Detection

Part Number

Type

Frequency

Diameter

Connector

Connection

TF4M0045

Standard Shear Wave - 45 Deg

4MHz

10mm

Lemo OO

Side

SINGLE ELEMENT DELAY LINE TRANSDUCERS - 'INTELLIGENT' - The transducers listed below are 'intelligent' transducers with automatic transducer recognition

Part Number

Type

Frequency

Diameter

Connector

Connection

TXC15M0CM

DakotaNDT Full Waveform Capture Corrosion G Precision Thickness Gauge

15MHz

1/4"

ODU

n/a

TXC20M0CM

20MHz

1/4"

ODU

n/a

SINGLE ELEMENT DELAY LINE TRANSDUCERS

Part Number

Type

Frequency

Diameter

Connector

Connection

T-404-1507

Single Element - Standard

2.25MHz

1/2"

Microdot

Top

T-402-2507

5MHz

1/4"

Microdot

Top

T-404-2507

5MHz

1/2"

Microdot

Top

T-402-5507

15MHz

1/4"

Microdot

Side

T-402-6507

20MHz

1/4"

Microdot

Side

SINGLE ELEMENT DELAY LINE PENCIL TRANSDUCERS

Part Number

Type

Frequency

Diameter

Connector

Connection

T-481-4507

Single Element - Pencil 1/16" Tip

10MHz

3/16"

Microdot

Top

T-581-5507

15MHz

3/16"

Microdot

Top

T-681-4507

Single Element - Pencil 90° Right Angle

10MHz

3/16"

Microdot

Side

DELAY TIPS FOR SINGLE ELEMENT DELAY LINE TRANSDUCERS

Part Number

Type

Diameter

Material

F-000-7102

Delay Tip - Standard

1/4" x 3/8" L

Acrylic

F-000-7103

1/4" x 1/2" L

Acrylic

X-132-0000

Delay Tip - Cone

1/8"

Acrylic

X-532-0000

3/16"

Acrylic

X-633-0000

Delay Tip - Standard

1/4"

Graphite

X-533-0000

Delay Tip - Cone

3/16"

Graphite

X-152-0000

Delay Tip - Pencil

1/16" x 0.45 L

Acrylic

X-752-0000

Delay Tip - Pencil

1/8" x 0.45 L

Acrylic

TRANSDUCER CABLES

Part Number

Description

N-104-0020

Transducer Cable: 1.2m (4') Single Lemo 00 to Microdot

N-104-0000

Transducer Cable: 1.2m (4') Single Lemo 00 to Lemo 00 - Prove up transducer

ULTRASONIC COUPLANT

Part Number

Description

T92015701

Ultrasonic Couplant, 120ml/4fl oz

T92015701-5

Ultrasonic Couplant, 120ml/4fl oz, Pack of 5 Bottles

T92024034-7

Ultrasonic Couplant, 300ml (10fl oz)

T92024034-8

Ultrasonic Couplant; 500ml (17fl oz)

CALIBRATION BLOCKS

Part Number

Description

X-000-0001

Calibration Block: 5 Step; 0.1 - 0.5"; 4340 Steel

X-000-0002

Calibration Block: 4 Step; 0.25 - 1.0"; 4340 Steel

X-000-0022

Calibration Block: 5 Step; 2.5 - 12.5mm; 1018 Steel

X-000-0005

Calibration Block Carry Case

MISCELLANEOUS TRANSDUCER ACCESSORIES

Part Number

Description

F-000-7000

Bell shaped Spring Loaded Probe Holder (V-Block) – Pencil Probes - Top Cable Entry Models Only

F-000-7001

Bell shaped Spring Loaded Probe Holder (V-Block) – Dual Transducer - Tube Inspection

A-129-6003

6” Extension Wand for Single Element Microdot Transducers
