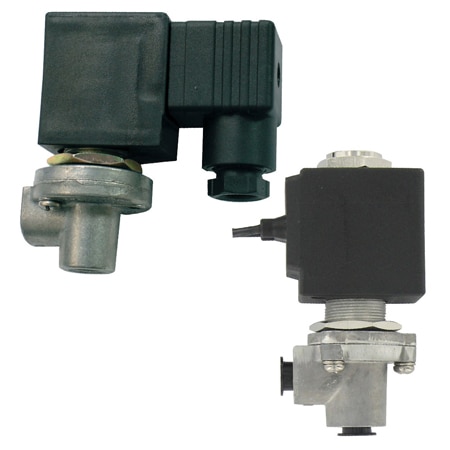

Van điện từ pilot RSV cho điều khiển màng RDCV, dễ dàng lắp đặt Dwyer RSV1D (0.33 gal/min, 1/8 in, NPT Female)

Weight: 0.6 lb

Cv Factor: 0.33 gal/min

Compliance: CE

Supply Voltage: 110 Vac

Pressure Limits: 4.4 to 124.7 psi

Enclosure Ratings: IP66, NEMA Type 4X

Materials, Wetted: Aluminum, Buna-N (NBR), Stainless Steel

Power Consumption: 12 W, inrush: 17 VA, holding: 14.5 VA

Supply Power Type: AC

Media Compatibility: Argon, Compatible Gases, Nitrogen

Mounting Orientation: Not Position Sensitive

Electrical Connection: DIN 43650 A (solenoid valve)

Pneumatic Tube Length: 9.8' max

Process Connection Size: 1/8 in

Process Connection Type: NPT Female

Process Temperature, Max: 185 °F

Process Temperature, Min: -4 °F

Operating Temperature, Max: 122 °F

Operating Temperature, Min: -4 °F
