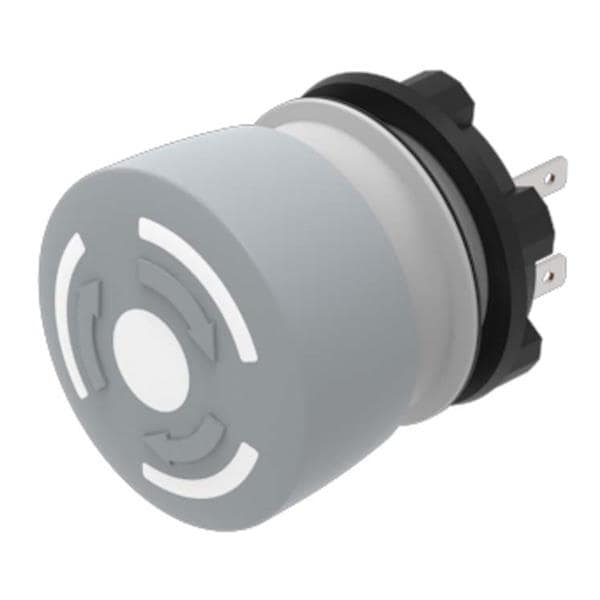

Công tắc dừng LENS TPT WTLT CLR EAO 84-6830.0020

Life: 50000 Cycles

Color: Gray (Light Gray)

Length: 26 mm

Actuator: Round

Material: Panel

IP Rating: IP65

Button Size: 32 mm

Illuminated: Non-Illuminated

Unit Weight: 33.699 g

Contact Form: SPST

Panel Cutout: 22.3 mm

REACH - SVHC: Details

Actuator Style: Round

Current Rating: 3 A

Contact Plating: Gold

Actuator Material: Polyamide (PA66)

Termination Style: Solder Lug

Voltage Rating AC: 240 VAC

Voltage Rating DC: 250 VDC

Flammability Rating: UL94 V-0

Maximum Operating Temperature: + 65 C

Minimum Operating Temperature: - 25 C
