Máy đo nhiệt độ bằng hồng ngoại Elcometer G214L-3 (-35°C đến 365°C)

Dải đo: -35°C đến 365°C (-31 đến 689 ° F)
Nhiệt độ môi trường: 0 đến 50 ° C (32 đến 122 ° F)
Độ phân giải: 0,2 ° C (0,5 ° F)
Độ chính xác: ± 1,5 ° C (2,7 ° F)
Distance-To-Target: 8: 1,25mm chỗ kích thước
Phát xạ: Cố định ở 0,95
Thời gian đáp ứng: 1 giây
Loại Pin: 2 x LR03 (AAA)
Thời lượng pin: 14 + giờ sử dụng liên tục
Kích thước: 166 x 34 x 64 mm
Trọng lượng: 113g
Danh sách đóng gói: Máy chính 214 , 2 x pin AAA (lắp), dây đeo cổ tay và hướng dẫn sử dụng

Chi tiết

Manual

Datasheet

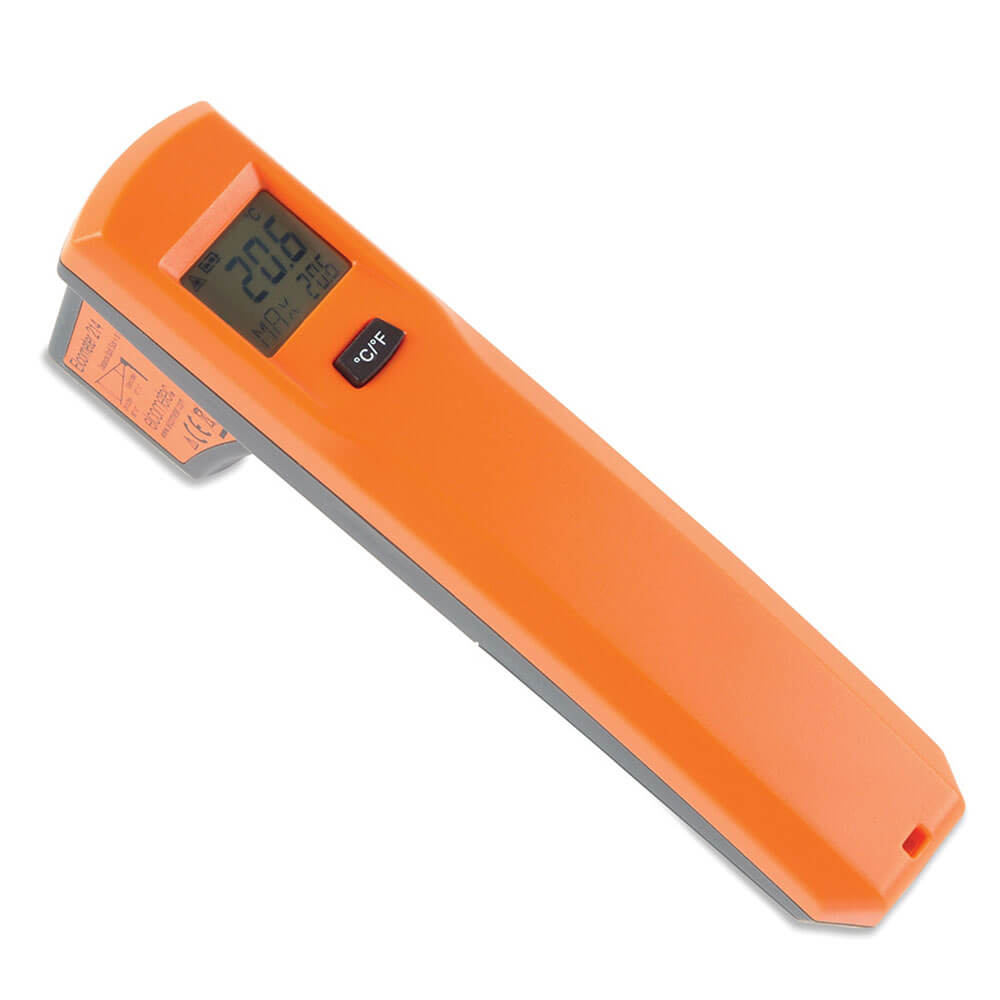

Elcometer 214L IR Digital Laser Thermometer

The Elcometer 214 is a simple, easy-to-use, non-contact thermometer which safely and accurately measures surface temperature of non-reflective materials using infrared technology.

With a user switchable measuring range of -35°C to 365°C or -31°F to 689°F, a digital display of the temperature is produced in less than one second.

  • Non-contact technology with laser spot indicator
  • ºC / ºF user switchable
  • Fast, 1 second scanning of any surface
  • Measure objects as small as 25mm
  • Distance-to-Target Ratio of 8:1
  • Easy to read LCD display

The Elcometer 214 IR Digital Laser Thermometer has a D/T ratio (Distance-to-Target) of 8:1 and measures the emitted energy from a target spot one-eighth the size of the working distance.

As can be seen in the diagram, if the distance from the sensor optics to the target is 200mm  for example, the diameter of the measured area is 25mm
