Chế độ đo Pulsed-Echo (P-E), Echo-Echo ThruPaint™ (E-E)
Các vật liệu đo: Nhôm, thép, thép chống gỉ, gang, plexiglass, PVC, polystyrene và polyurethane.
Cấp bảo vệ IP (chống nước, chống bụi): IP54
Tốc độ đo: 4Hz
Dải đo độ dày: P-E: 0.63-500mm, E-E: 2.54 - 25.40mm
Độ chính xác đo: ±1% or ±0.1mm
Các đơn vị đo: mm or inch
Độ phân giải: Lo; ie 0.1mm, 0.01 Inch, 10m/s, or 0.001 in/μs
Đầu ra dữ liệu: USB
Kiểu đầu dò: Dual element
Kiểu pin: 2xAA
Thời lượng pin: Alkaline: 15 giờ, Lithium: 28 giờ
Nhiệt độ hoạt động: -10 đến 50°C
Kích thước (w x h x d): 145x73x37mm
Trọng lượng (bao gồm pin): 210 g
Danh sách đóng gói: Máy chính MTG4, đầu dò góc phải 5 Mhz 1/4, chất tiếp âm, dây đeo cổ tay, bảo vệ màn hình, hộp bảo vệ, 2 pin AA, chứng nhận hiệu chuẩn, hướng dẫn sử dụng
As well as all the features of the MTG2, the MTG4 has two calibration options. Using an uncoated sample of test material of a known thickness, the gauge can be calibrated using 1-Point calibration. Alternatively, the user can select one of 39 pre-set materials stored within the gauge including; aluminium, steel, stainless steel, cast iron, plexiglass, PVC, polystyrene and polyurethane.
Measurement Mode
Echo-Echo ThruPaint™ (E-E) measurement mode enables readings to be taken on coated materials with a thickness range up to 25.4mm (1”). In Echo-Echo ThruPaint™ mode, the coating thickness is ignored and the material thickness from the top surface of the material to the material density boundary is displayed.
Data Output
Compatible with ElcoMaster® software, individual readings can be downloaded via USB to PC or similar device for further analysis.
![]() |
Features:
|

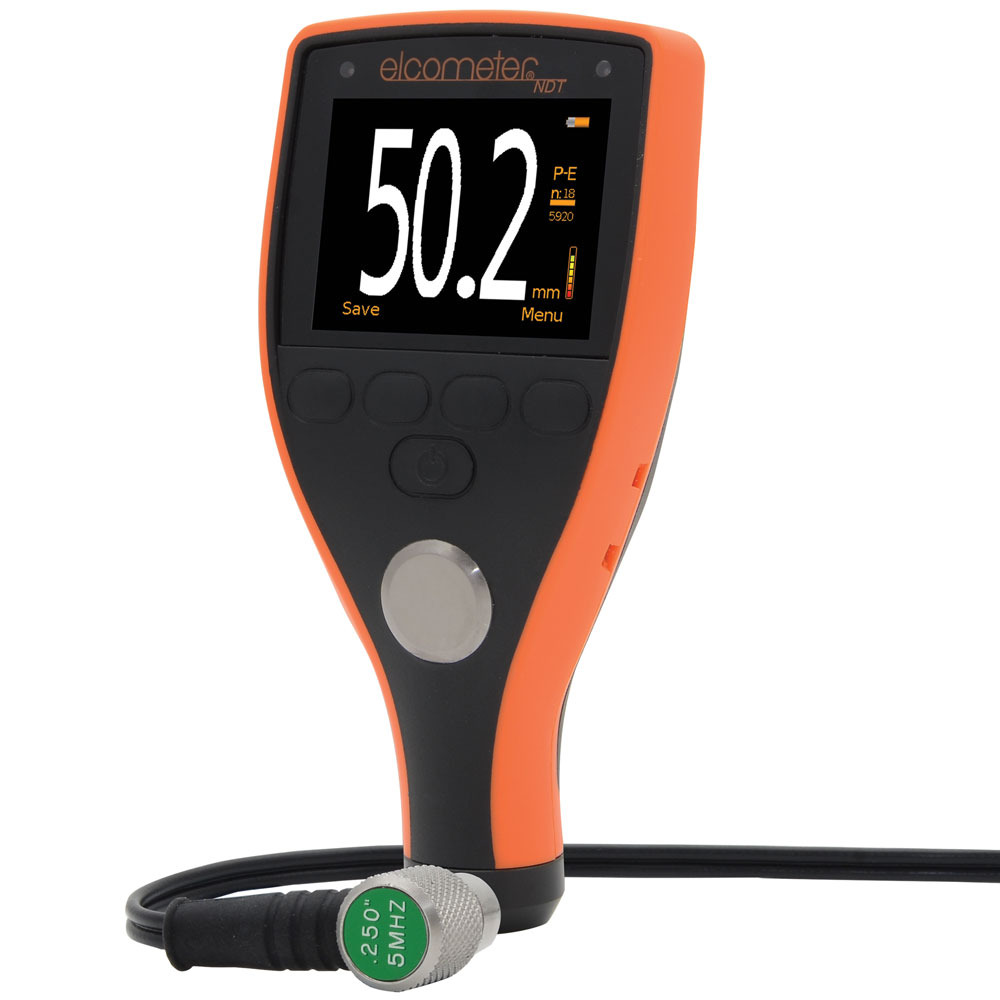

MTG4 Material Thickness Gauge
Technical Specification
|
Part Number (with Transducer)1 |
MTG4-TXC |
|
Part Number (gauge only) |
MTG4 |
|
Easy to use menu structure in multiple languages |
■ |
|
Tough, impact, waterproof and dust resistant equivalent to IP54 |
■ |
|
Bright colour screen with permanent backlight |
■ |
|
Ambient light sensor, with adjustable brightness |
■ |
|
Scratch and solvent resistant display; 2.4" (6cm) TFT |
■ |
|
Large positive feedback buttons |
■ |
|
USB power supply via PC |
■ |
|
Gauge software updates2 via ElcoMaster® Software |
■ |
|
2 year gauge warranty3 |
■ |
|
Measurement Mode |
|
|
Pulsed Echo (P-E) |
■ |
|
Echo-Echo ThruPaint™ (E-E) |
■ |
|
Measurement Rate |
4Hz |
|
Thickness Range4 |
|
|
P-E: 0.63-500mm (0.025-20") |
■ |
|
E-E: 2.54 - 25.40mm (0.100-1.00") |
■ |
|
Measurement Accuracy5 |
±1% or ±0.1mm (0.004") |
|
Measurement Units |
mm or inches |
|
Repeatability / Stability Indicator |
■ |
|
Display Mode: Reading |
■ |
|
Selectable Reading Resolution |
|
|
Lo; ie 0.1mm, 0.01 Inch, 10m/s, or 0.001 in/μs |
■ |
|
Calibration Options |
|
|
Zero (using the integral zero disc) |
■ |
|
1 - point |
■ |
|
Material selection; 39 preset materials |
■ |
|
Factory; resets to the factory calibration |
■ |
|
Data Output |
|
|
USB; to PC |
■ |
|
Transducer Probe Type |
Dual element |
|
Auto transducer recognition |
■ |
|
Auto V-path correction |
■ |
|
Battery Type6 |
2 x AA |
|
Battery Life6 |
Alkaline: 15 hours |
|
Operating Temperature |
-10 to 50°C (14 to 122°F) |
|
Size (w x h x d) |
145x73x37mm (5.7x2.84x1.46") |
|
Weight (including batteries) |
210g (7.4oz) |
|
Packing List |
Elcometer MTG4, 5MHz 1/4" right angle transducer, couplant, wrist harness, screen protector, protective case, 2 x AA batteries, calibration certificate, operating instructions |
STANDARDS:
ASTM E797, EN 14127, EN15317
1 5MHz 1/4" right angle transducer supplied
2 Internet connection required
3 The Elcometer MTG range is extendable within 60 days from date of purchase, free of charge to two years
4 Dependent on the material being measured and the transducer being used
5 Whichever is the greater
6 Supplied with Alkaline, Lithium and rechargable can be used with the gauges, continuous use at 1 reading per second
