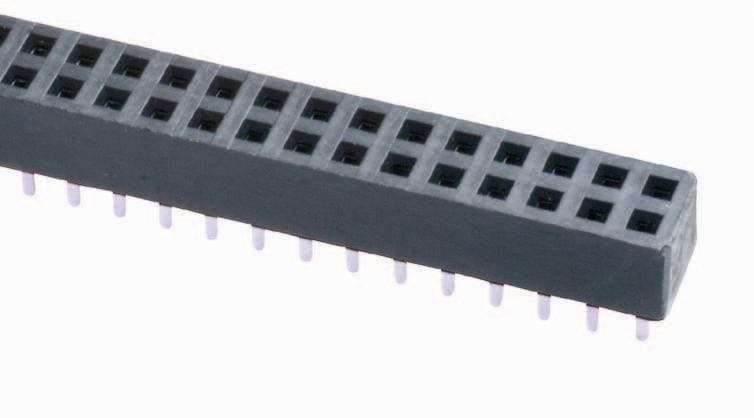

3M Electronic Solutions Division 950414-6102-AR Socket 14P BD MNT SKT 2R STRT PTH 10U AU

Pitch: 2 mm (0.079 in)

Application: Wire-to-Board

Row Spacing: 2 mm (0.079 in)

Housing Color: Black

Latching Type: Unlatched

Contact Gender: Socket (Female)

Current Rating: 1 A

Mounting Angle: Straight

Mounting Style: Through Hole

Number of Rows: 2 Row

Voltage Rating: 1 kV

Contact Plating: Gold

Contact Material: Copper Alloy

Housing Material: Thermoplastic

Termination Style: Solder Pin

Flammability Rating: UL 94 V-0

Number of Positions: 14 Position

Insulation Resistance: 500 MOhms

Termination Post Length: 2.7 mm (0.106 in)

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
