CPU: i3-6100U / i5-6300U / i7-6600U
Cores: Dual Core
Frequency: 2.3 GHz/ 2.4 GHz/ 2.6GHz
L3 Cache: 3 / 3 / 4 MB
TDP: 15W
Memory: 1 x SODIMM DDR4 1866/2133 MHz (max. 16 GB) (1.2 V)
Storage: 1 x 2.5 inch SATA bay; 1 x mSATA bay
Network (LAN): 2 x 10/100/1000 Mbps Ethernet (Intel I219LM; Realtek 8119i)
I/O: 2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485(Adjustable through BIOS); 2 x USB 3.0, 2 x USB 2.0; 1 x HDMI; 1 x TPM 2.0 internal (optional)
Speaker: 2 x 1W
Expansion: 1 x Full-size mini PCIe slot
Watchdog Timer: 255 timer levels, set up by software
Dimensions: 488 x 309 x 61.7 mm (19.2 x 12.1 x 2.4 in)
Weight: 5.7 kg (12.56 lb)
OS Support: Microsoft® Windows 7(32/64-bit), Windows 10 IOT LTSC(64-bit), Linux
Input Voltage: 12 ~ 24 VDC
Power Consumption: 65W

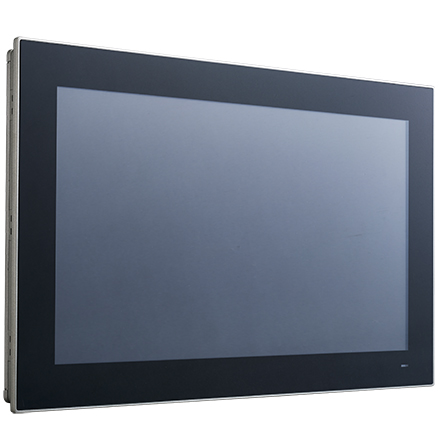

Display Type: 18.5 inch TFT LCD (LED backlight)
Resolution: 1366 x 768
Viewing Angle: 85 (left), 85 (right), 80 (up), 80 (down)
Luminance (cd/m2): 450
Contrast Ratio: 1000
Backlight Lifetime: 50,000 hr (min.)
Touch Type: Multi-touch projected capacitive
Light Transmission: 90 % ± 2%
Controller: USB interface
Operating Temperature: 0 ~ 50 °C (32 ~ 122 °F)
Storage Temperature: -20 ~ 60 °C (-4 ~ 140 °F)
Relative Humidity: 95% @ 40 °C (non-condensing)
Shock: Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
Vibration: Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-64
EMC: CE, FCC Class B, BSMI, UKCA
Safety: CB, UL, CCC, UKCA
Front Panel Protection: IP66 compliant
