CPU: i3-7100U
Cores: Dual Core
Frequency: 2.4 GHz; 3 GHz with turbo boost
L2 Cache: 3 MB
TDP: 15W
Memory: 1 x SODIMM DDR4 1866/2133 MHz (max. 16 GB) (1.2 V)
Storage: 1 x 2.5 inch SATA bay; 1 x mSATA bay
Network (LAN): 2 x 10/100/1000 Mbps Ethernet (Intel I219LM; Realtek 8119i)
I/O: 2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485(Adjustable through BIOS); 2 x USB 3.0, 2 x USB 2.0; 1 x HDMI; 1 x TPM 2.0 internal (optional)
Speaker: 2 x 1W
Expansion: 1 x Full-size mini PCIe slot
Watchdog Timer: 255 timer levels, set up by software
Dimensions: 595.9 x 374.1 x 61.5 mm (23.5 x 14.7 x 2.4 inch)
Weight: 8.6kg (18.96lb)
OS Support: Microsoft® Windows 10 IOT LTSC(64-bit), Linux
Input Voltage: 12 ~ 24 VDC
Power Consumption: 80W

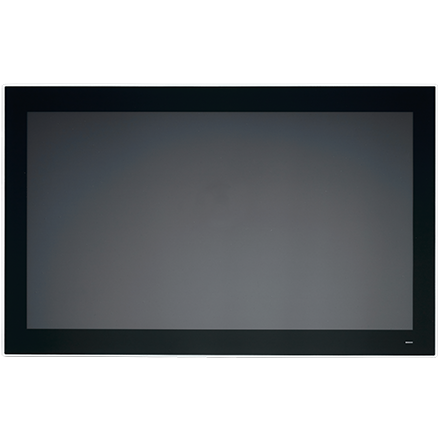

Display Type: 23.8 inch TFT LCD (LED backlight)
Resolution: 1920 x 1080
Viewing Angle: 89(left), 89(right), 89(up), 89(down)
Luminance (cd/m2): 350
Contrast Ratio: 1000
Backlight Lifetime: 30,000 hr (min.)
Touch Type: 10-point multi-touch projected capacitive
Light Transmission: ≥85%
Controller: USB interface
Operating Temperature: 0 ~ 50 °C (32 ~ 122 °F)
Storage Temperature: -30 ~ 60 °C (-22 ~ 140 °F)
Relative Humidity: 95% @ 40 °C (non-condensing)
Shock: Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
Vibration: Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-64
EMC: CE, FCC Class B, BSMI, UKCA
Safety: CB, UL, CCC, UKCA
Front Panel Protection: IP66 compliant
