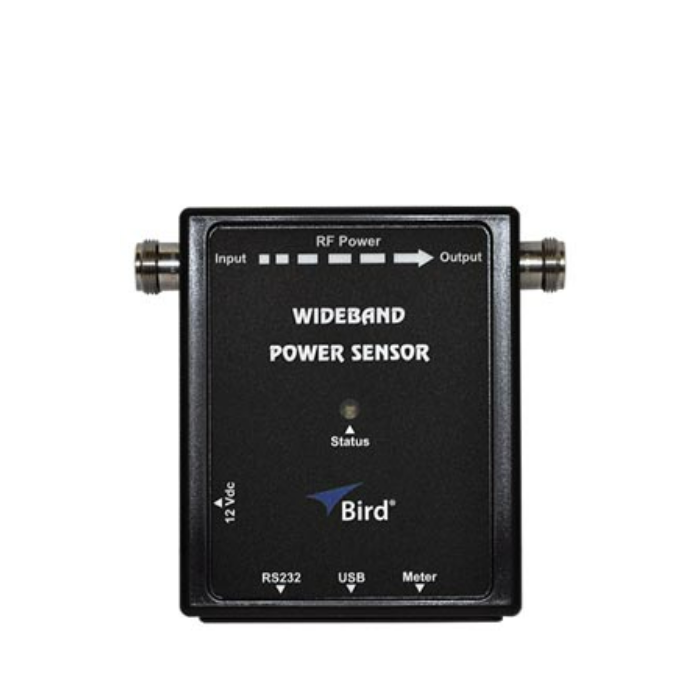

Frequency Range: 25 MHz to 1.0 GHz
Power Range: 500 mW to 500 Watts Avg., 1300 Watts Peak
Impedance: 50Ω
Insertion VSWR: <1.05
Insertion Loss: <0.05 dB
Connectors: N Female (Both)
Power Supply: USB load DC Input Connector: 7-18 VDC at less than 0.1A
Weight: 1.2 lbs., (.54 kg) max.
Dimensions H x W x D: 4.8 in x 4.6 in x 1.3 in/ (122 mm x 117 mm x 33 mm)
Operating Temperature: -10 °C to +50 °C (+14 °F to +122 °F)
Storage Temperature: -40 °C to +80 °C (-40 °F to +176 °F)
CE: EMC EN 61326-1-2006
