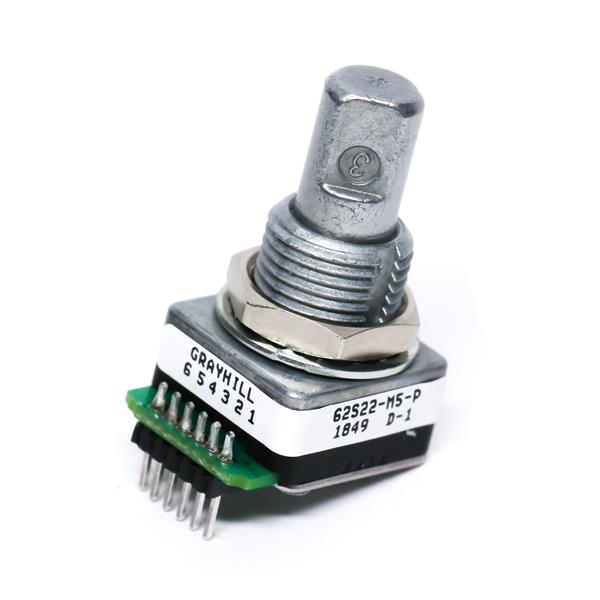

Life: 1000000 Cycle
Resolution: 16 PPR
Shaft Type: D / Flatted
Technology: Optical
Output Type: Quadrature
Unit Weight: 22.762 g
With Switch: Pushbutton Switch
Bushing Size: 3/8 in x 0.312 in
Shaft Length: 9.53 mm
Bushing Thread: 3/8-32 UNEF-2A
Mounting Style: PCB Mount
Shaft Diameter: 6.32 mm
Bushing Material: Zinc
Size / Dimension: 12.72 mm x 12.7 mm x 24.82 mm
Number of Detents: 16 Detent
Termination Style: PC Pin
Number of Channels: 2 Channel
Operating Supply Voltage: 5 VDC
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
