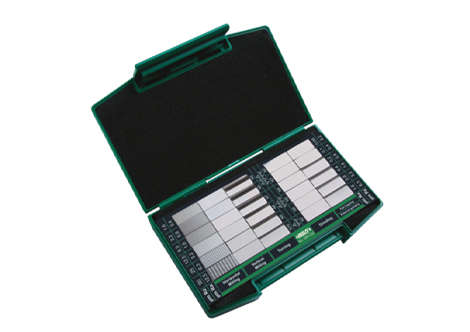

INSIZE ISR-CS2 Surface roughness specimen set

Machine method: horizontal milling

Roughness (Ra): 0.4, 0.8, 1.6, 3.2, 6.3, 12.5µm

Roughness (Rz): 1.6, 3.2, 6.3, 12.5, 25, 50µm

Quantity: 6pcs

Machine method: vertical milling

Roughness (Ra): 0.4, 0.8, 1.6, 3.2, 6.3, 12.5µm

Roughness (Rz): 1.6, 3.2, 6.3, 12.5, 25, 50µm

Quantity: 6pcs

Machine method: turning

Roughness (Ra): 0.4, 0.8, 1.6, 3.2, 6.3, 12.5µm

Roughness (Rz): 1.6, 3.2, 6.3, 12.5, 25, 50µm

Quantity: 6pcs

Machine method: plain grinding

Roughness (Ra): 0.05, 0.1, 0.2, 0.4, 0.8, 1.6µm

Roughness (Rz): 0.2, 0.4, 0.8, 1.6, 3.2, 6.3µm

Quantity: 6pcs

Machine method: plat lapping

Roughness (Ra): 0.05, 0.1µm

Roughness (Rz): 0.2, 0.4µm

Quantity: 2pcs

Machine method: external grinding

Roughness (Ra): 0.2, 0.4, 0.8, 1.6µm

Roughness (Rz): 0.8, 1.6, 3.2, 6.3µm

Quantity: 4pcs

For checking, identifying and specifying the roughness by symbol

Made of carbon steel
