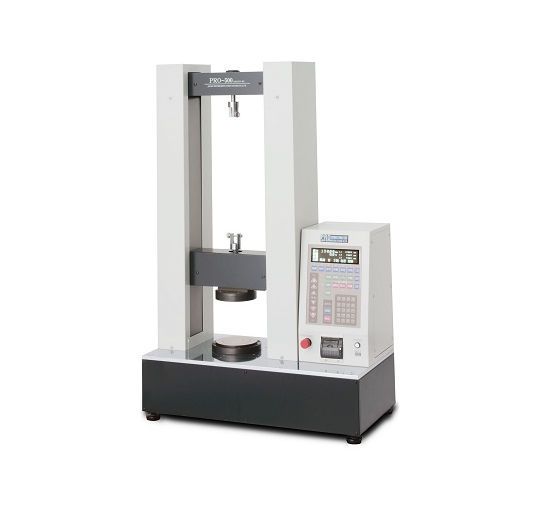

Maximum Load: 50kN (5000kgf)
Auto Switch Over of Hi / Lo Range: 50kN / 5kN
Resolution: 10N / 1N
Load Accuracy: JIS B7738 Class 0.5 ( ± 0.5% of Applied Load)
Maximum Stroke: 0.01mm (high-grade is 0.001mm = 1 micron)
Resolution: 0.01mm for Basic & Special Model (High Grade Model is 0.001mm)
Length Accuracy: ± (0.05 + 0.0001 * L) mm where L is the arbitrary length
Test speed: 1 ~ 600 mm / min
Standard Anvil (Steel): Ø250mm
Power Supply: 3 Phase AC 220V (50/60Hz)
Power Rating: 500VA
Dimension: W1045 x D550 x H1910mm
Weight: Approx. 500kg
CHARACTERISTICS
• Max. load (peak) can be captured through plate (flat) spring test Function.
• System is equipped with ±, {eb9cfd4e3b516869cb839b8b2c338ebd16b99827caa87fe8648376116c5dd92c} keys which are convenient for tolerance input. Setting for upper and Lower Limits is done easily through auto calculation.
• System accuracy can be maintained over a long period of time through the use of high-rigidity linear guide and newly adopted pressurized ball screw.
• Information is always transmitted instantly through Florescence display which provides Superb vision
