Length: 13.97 mm
Diameter: 24.13 mm

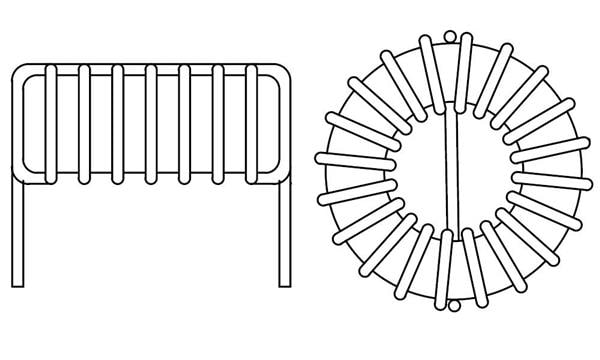

Core Type: Toroidal - Horizontal Mount
Shielding: Unshielded
Tolerance: 15 %
Inductance: 150 uH
Application: High Current
Termination: Standard
Unit Weight: 13.060 g
Lead Spacing: 0.86 in
Core Material: Ferrite
Lead Diameter: 0.69 mm
Mounting Style: PCB Mount
Test Frequency: 1 kHz
Termination Style: Radial
Maximum DC Current: 3.1 A
Maximum DC Resistance: 110 mOhms
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 55 C
