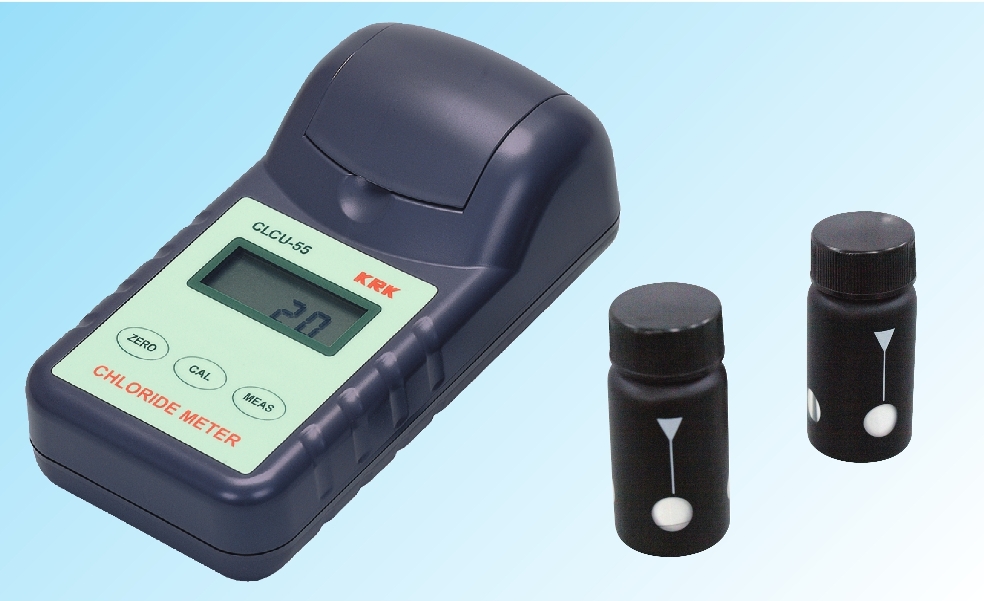

Measurement Targets: Chlorine ion concentration in copper sulfate plating bath
Measurement Equation: 90° Scattered Photometric Method
Measurement range: 0.0~199.9
Presentation Resolution: 0.1mg/L
Repeatability: ± within 5% (FS)
Response Time: 5 seconds after power ON
Automatic power off: Hold the measured value for 5 seconds, then auto power off
Measurement time: About 3 minutes each time
Self-diagnostic function: Battery voltage, poor calibration, LED degradation
Calibration: Normally only
zero calibration; Span calibration is performed as needed (using standard solution)
Power: AAA alkaline batteries (LR03×4) DC6V
External dimensions: 88(W)×174(D)×65(H)mm
Weight: Approx. 310g
Standard Configurations: Instrument body, alkaline batteries, 4 measuring cells, measurement reagent, calibration standard solution 50ml, micropipette (for water analysis), instruction manual, warranty card, carrying case
