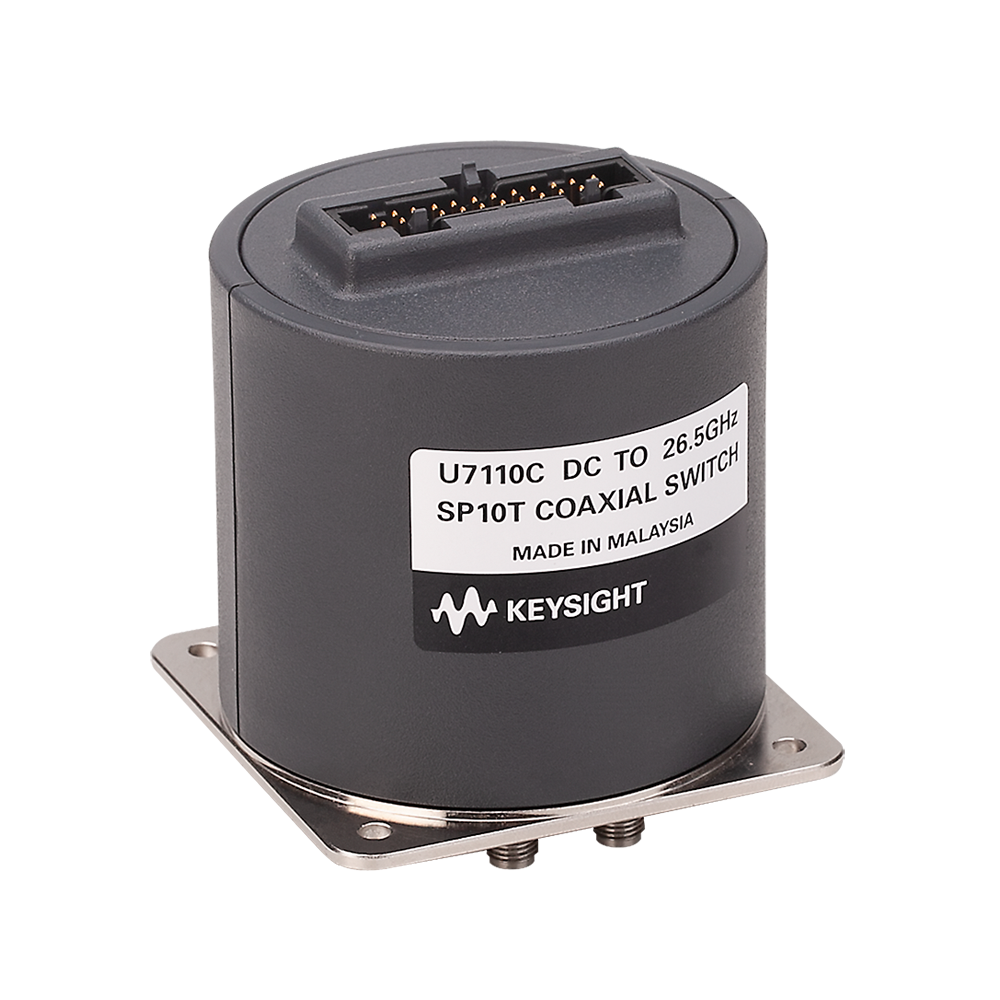

Operating Frequency: DC to 26.5 GHz
Configuration: SP8T & SP10T
Isolation (dB), minimum
DC to 3 GHz: 70 dB
3 to 26.5 GHz: 63 dB
Insertion loss (dB): 0.35 + 0.025 x frequency (GHz)
Return loss (VSWR), maximum
DC to 4 GHz: 20.8 dB (1.20)
4 to 9 GHz: 17.7 dB (1.30)
9 to 16 GHz: 14.7 dB (1.45)
16 to 24 GHz: 13.3 dB (1.55)
24 to 26.5 GHz: 12.0 dB (1.67)
Switching time, maximum: 20 ms
Please read the datasheet for ordering suitable options
