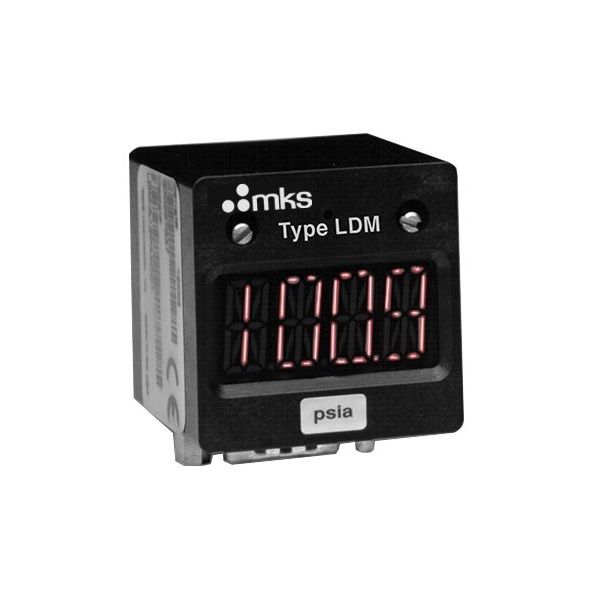

Display:
- LDM-A: 3.5 place red LED, 7-segment, 0.37 in. tall
-LDM-D: 4 place red LED, 16-segment, 0.5 in. tall.
Display Units:
-LDM-A: psi, in Hg, mm Hg (Torr), bar, Pa, or in H2O
-LDM-D: PSIA with front-panel switch for kPa, bar, or mmHg/Torr
Number of Channels: 1
Input Signal:
-LDM-A: 0-5 VDC, 0-10 VDC, 4-20 mA
-LDM-D: 0-10 VDC
Output Signal:
-LDM-A: 0-5 VDC, 0-10 VDC, 4-20 mA
-LDM-D: 0-10 VDC
Operating Temperature: 0° to 50°C
Compliance: EMC Directive 2014/30/EU
For specific range please check the attachment below!
