Ethernet Bandwidth: 1 Gbits/s
Number of Ethernet Ports: 2
Dimensions: 10.0 cm × 16.0 cm (3.9 in. × 6.3 in.)
Ethernet interface: Two 10P10C modular jack connectors
Slot requirements: One peripheral slot supporting a x4 PCIe connection (either PXIe/cCPIe slot or PXIe hybrid slot)
CompactPCI Express compliance: Version 1.0a
Compatibility: PXI Express Specification 1.0
CompactPCI Express Specification 1.0
Weight: 158 g (5.5 oz)
Native link width: x4
Signaling
Ethernet: 1000Base-T compliant on four pairs of Category 5 cable
Power Requirements
Typical
0.375 A at 3.3V
0.36 A at 5V
1.19 A at 1.8V
5.2 W maximum

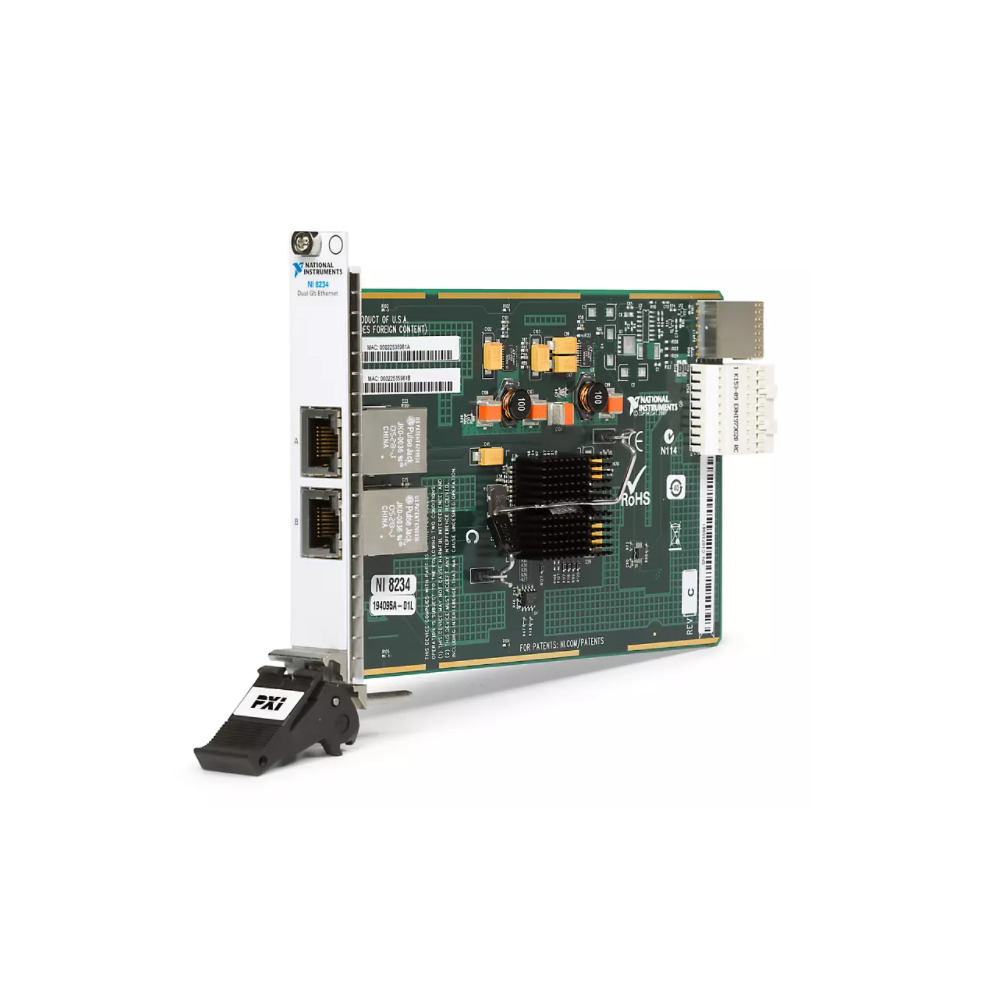

Enables Ethernet-based communication between PXI hardware and external instruments and devices and supports GigE Vision cameras without power over Ethernet (PoE).
The PXI Ethernet Interface Module equips PXI systems with high-bandwidth Ethernet-based connectivity with up to 40 Gb/s data rates per port. Featuring compatibility with industry-standard network and automatic cable polarity detection, this module is ideal for high-performance data transfer and vision applications on the PXI platform. These modules have independent bandwidth to support up to four GigE Vision cameras without PoE.
