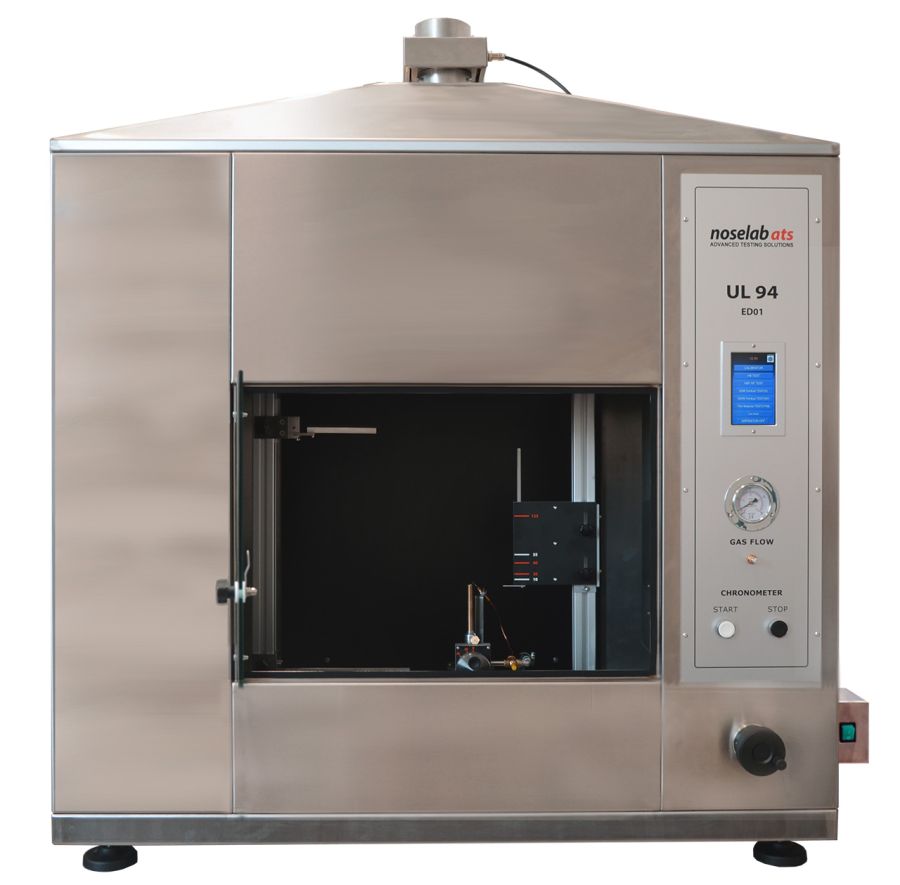

Technical Features
Test chamber: Bench-model with front doors for inspection and cleaning
Internal background: Black
Fume exhaust: Electro aspirator for smoke extraction after test, outlet diameter 100 mm
Flame position adjustment: Slide system regulated from outside
Gas feeding system: Methane gas panel complete with flow meter, tap and pressure gauge
Sample holder: Standards-compliant with adjustable sample position
Control panel: Touch screen for flame application timing, post-combustion time detection, flame ignition and flame temperature reading
Cabinet Dimensions
Useful volume: 1 cu.m (1200 × 800 × 1100 mm)
Overall dimensions: 1200 × 800 × 1600 mm
Package dimensions: 1300 × 900 × 1800 mm
Net weight: 95 kg
Supply
Burner: According to ASTM D 5205
Thermocouples: Two thermocouples with copper block (5 mm and 9 mm)
Burner adjustment: Joints and clamps
Wire gauze: 20 mesh stainless steel wire gauze, approx. 125 mm
Specimen support: For test specimens
Mandrel: 12.7 mm Ø mandrel for specimen winding
