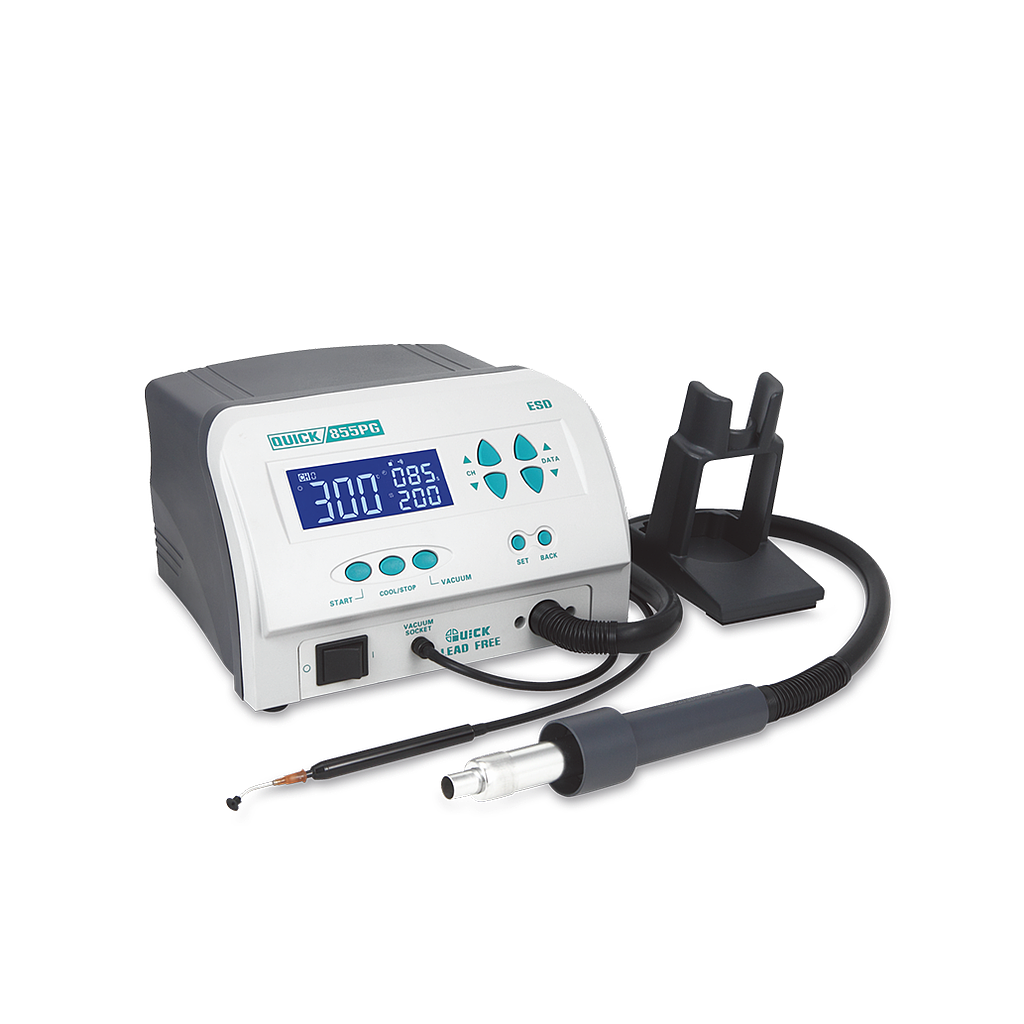

Power: 1300 W
Temperature range: 100℃-500℃
Air volume: 6-200 class
Temperature zones: 6
Suction of vacuum pen: 0.06 MPa
Number of process channels: 10
Heating element: A1155
Standard air nozzle: A1130（φ4.4）/A1121（φ6.4）/A1301（φ12.7）
Overall dimensions: 250* 230*150mm
Weight: About 5.2 Kg
1.Only 10 s to de-solder the IC.
2.Password ca be set to protect menu from inadvertent changes.
3.Excellent de-soldering efficiency and speed, the whole process consists of six temperature zones. Parameters of each working phase lime time, air volume, temperature etc can be set and viewed.
4.10 channels available to set and save different process parameters.
5.With a vacuum pen, easy to use.
6.Large LCD displays temperature, air volume and working time etc.
7.Digital temperature calibration, simple and convenient.
8.Sleep or use controlled by pedal switch and button.
9.Accurate temperature control, closed loop of sensor, temperature stability up to±2℃.
10.Auto cooling function available, can prolong lifetime of heating element.
11.Working time settable with the range of 1-999s, “---”means continuous working state.
