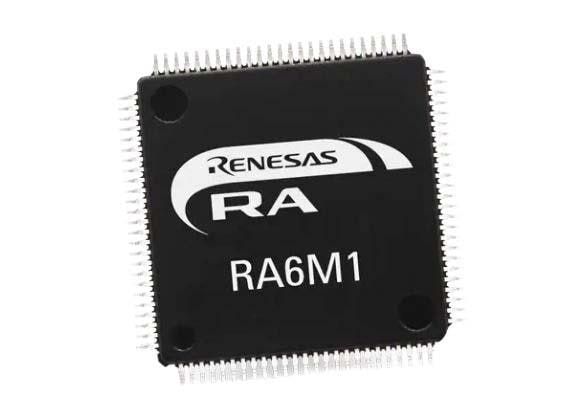

Renesas Electronics R7FA6M1AD3CFP#AA0 MCUs MCU RA6 ARM CM4 120MHz 512K/256K QFP100

Core: ARM Cortex M4

Width: 14 mm

Height: 1.7 mm

Length: 14 mm

Unit Weight: 600 mg

Data RAM Size: 256 kB

Data RAM Type: SRAM

Data ROM Size: 8 kB

ADC Resolution: 12 bit

Data Bus Width: 32 bit

Interface Type: SPI

Mounting Style: SMD/SMT

Number of I/Os: 67 I/O

Processor Series: RA6M1

Moisture Sensitive: Yes

Program Memory Size: 512 kB

Program Memory Type: Flash

Number of ADC Channels: 19 Channel

Maximum Clock Frequency: 120 MHz

Number of Timers/Counters: 13

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
