Color: Black
Pitch: 1.63 mm
Height: 2.8 mm
Length: 24.3 mm

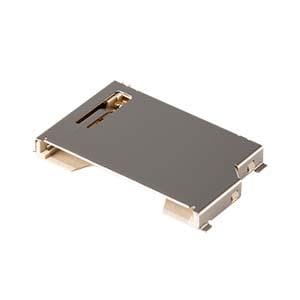

Card Type: SD
Latch Color: Silver
Orientation: Horizontal
Mating Cycles: 5000 Cycle
Mounting Type: SMD/SMT
Current Rating: 500 mA
Mounting Style: SMD/SMT
Number of Rows: 1 Row
Voltage Rating: 30 V
Contact Plating: Gold
Contact Material: Copper
Housing Material: Liquid Crystal Polymer (LCP)
Termination Style: Solder
Number of Contacts: 11 Contact
Insulation Resistance: 1 GOhms
Insertion - Extraction Style: Push-Pull
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
