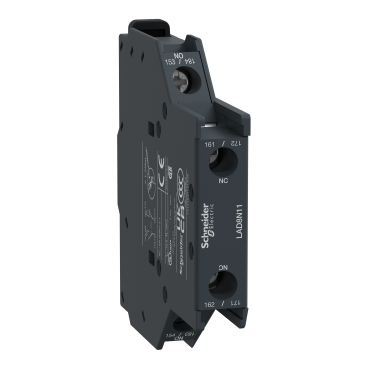

Range compatibility:
TeSys Deca LC1D09…95 AC coil
TeSys Deca LC1D115/150
TeSys Deca LC1D40A…80A AC Coil
TeSys Deca CAD AC coil
TeSys F LC1F
Mounting location: Side
Pole contact composition: 1 NO + 1 NC
Contacts operation: Instantaneous
[Ue] rated operational voltage: 690 V AC 25...400 Hz
[Ie] rated operational current:
6 A at 120 V AC-15
1.04 A at 690 V AC-15
0.55 A at 125 V DC-13
0.1 A at 600 V DC-13
[Ui] rated insulation voltage:
690 V conforming to IEC 60947-5-1
600 V conforming to UL
600 V conforming to CSA
[Ith] conventional free air thermal current: 10 A (at 60 °C)
Standards
EN/IEC 60947-5-1
UL 60947-5-1
CSA C22.2 No 60947-5-1
IEC 60335-1:Clause 30.2
IEC 60335-2-40:Annex JJ
UL 60335-2-40:Annex JJ
Product certifications:
CB Scheme
UL
CSA
CCC
EAC
UKCA
Complementary
Irms rated making capacity
140 A AC conforming to IEC 60947-5-1
250 A DC conforming to IEC 60947-5-1
Permissible short-time rating
100 A 1 s
120 A 500 ms
140 A 100 ms
Protection type: GG fuse 10 A
Mechanical durability: 30 Mcycles
Minimum switching current: 5 mA
Minimum switching voltage: 17 V
Non-overlap time
1.5 ms on de-energisation no overlap between NC and NO contact
1.5 ms on energisation no overlap between NC and NO contact
Insulation resistance: > 10 MOhm
Connections - terminals
Screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
Screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
Screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
Screw clamp terminals 1 cable(s) 1…4 mm²rigid without cable end
Screw clamp terminals 2 cable(s) 1…4 mm²rigid without cable end
Tightening torque:
1.7 N.m - with screwdriver flat Ø 6 mm
1.7 N.m - with screwdriver Philips No 2
1.7 N.m - with screwdriver pozidriv No 2
Height: 76 mm
Width: 12.5 mm
Depth: 76 mm
Environment
Environmental characteristic: Normal environment
IP degree of protection: IP20 conforming to IEC 60529
Protective treatment: TH conforming to IEC 60068
Ambient air temperature for storage: -60…80 °C
Ambient air temperature for operation: -5…60 °C
Operating altitude: 3000 m
