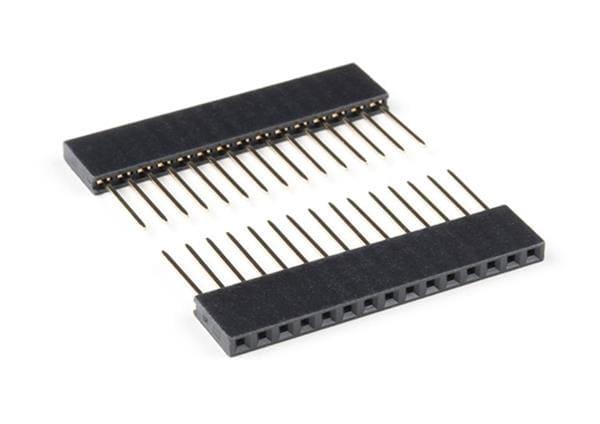

Pitch: 2.54 mm (0.1 in)
Unit Weight: 116.667 mg
Housing Color: Black
Contact Gender: Socket (Female)
Current Rating: 3 A
Mounting Angle: Straight
Mounting Style: Through Hole
Number of Rows: 1 Row
Contact Plating: Gold
Contact Material: Brass
Housing Material: Polybutylene Terephthalate (PBT)
Termination Style: Solder Pin
Flammability Rating: UL 94 V-0
Number of Positions: 15 Position
Insulation Resistance: 1 GOhms
Termination Post Length: 10.5 mm (0.413 in)
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
