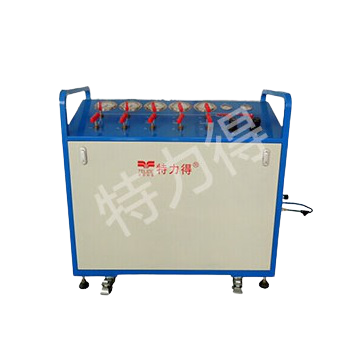

Pump model: S-86-JN-60 / 60; double ended pump; pressurization ratio: 6 0 : 1
Operation type: manual
Driving type: air-driven
Weight: 323 lbs.
Medium: pure nitrogen gas
Max. output pressure: 400 bar
The higher for the pre-charge gas pressure, the bigger for the output flow of the pump is.
Driving gas source: max. driving gas source pressure for system : 1 M P a. Max. driving pressure for the pump: 6.9 bar;To ensure the pressurization speed, driving gas source supply should reach 2.5 m3/min or more.
High pressure gauge: Accuracy 1.0% FS. Measuring range:600 bar.
