Description

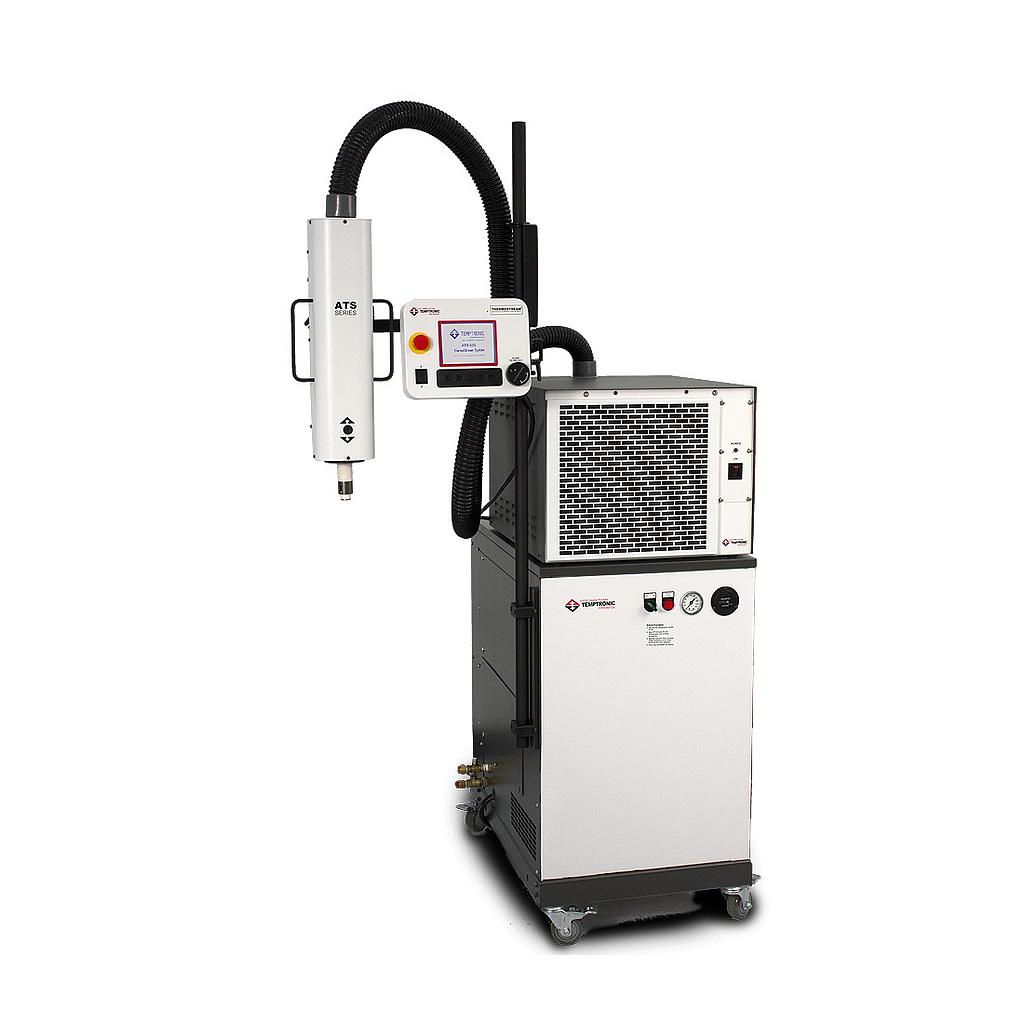

Advanced Temperature Source for fast and precise thermal conditioning of components, parts, hybrids, modules, subassemblies, and printed circuit boards. Capable of low temperatures without the use of Liquid Nitrogen (LN2) or Liquid Carbon Dioxide (LCO2)
Performance
Temperature Range*: -60 to +225°C No LN2 or LCO2 Required
Transition Rate*:
-40 to +125°C, <12 seconds
+125 to -40°C, <40 seconds
System Airflow Output*: 5scfm (2.4 l/s) Fixed Flow Rate
*Under nominal operating conditions.
Power Requirements
Chiller Power: 220 ±10% VAC, 50/60Hz, 16amp
Compressor Power: 220 ±10% VAC, 50/60Hz, 30amp
Temperature Range: -60 to +225°C
Transition Rates:
Heating: -40 to +125°C, <12 sec
Cooling: +125 to -40°C, <40 sec
System Airflow Output: 5scfm (2.4 l/s) Fixed Flow Rate
Temperature control
Temperature Display & Resolution: +/- 0.1°C
Temperature Accuracy: 1.0°C (when calibrated against NIST standard)
DUT Temperature Control: Proprietary control algorithm enables DUT temperature to be directly controlled
DUT Sensor Ports: Thermocouples (type T & K)
Operating environment
Operating Temperature: +20°C ~ +28°C; +23°C nominal
Humidity: 0 ~ 60%; 45% nominal
