Arch Size: TP-702C-M 1250 mm(W) x 450 mm(H)
Strap Width: 5 mm, 6 mm, or 9 mm
Tension Range: 1 - 32 kg
Capacity
Up to 33 bundles/minute (single strap)
Up to 20 bundles/minute (double straps)
(Model: TP-702C-L)
Minimum Bundle Size: 200 mm(W) x 20 mm(H) x 300 mm(L)
Bundle Weight: max 40 kg
Transport Speed: 15 - 60 M/phút
Electrical Requirements: 220V, 380V, 400V, 415V 50/60Hz 3PH
Options
Siemens HMI (touch panel)
Light tower with low strap sensor
Adjustable backstop
Foot pedal switch
Strapping cycle counter
Without press bar
Video
Watch as reference: TP-702C High Speed Corrugated Strapper
Datasheet

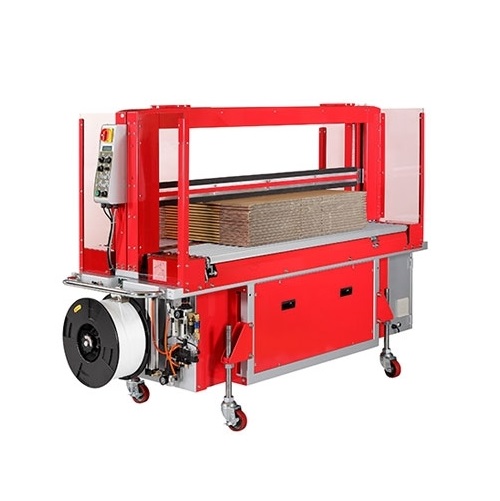

TP-702C corrugated strapper is built with Transpak Mercury strapping head and DC brushless motor direct drive technology. It's also equipped with the state-of-the-art Siemens PLC, electronic controls, proximity sensors, etc. High strapping speed, low maintenance requirement, and proven reliability make it particularly suitable for the sheet plants.
Features
Robust & compact mechanical strapping head
Siemens PLC
Free access to strap guides (patents registered)
Hinged roller table
Auto strap ejector
Patented jammed-strap ejection device
Full-width pneumatic press
Multiple strap function
Variable conveyor speed
Strap end ejector
Adjustable table height between 700mm and 1000 mm
