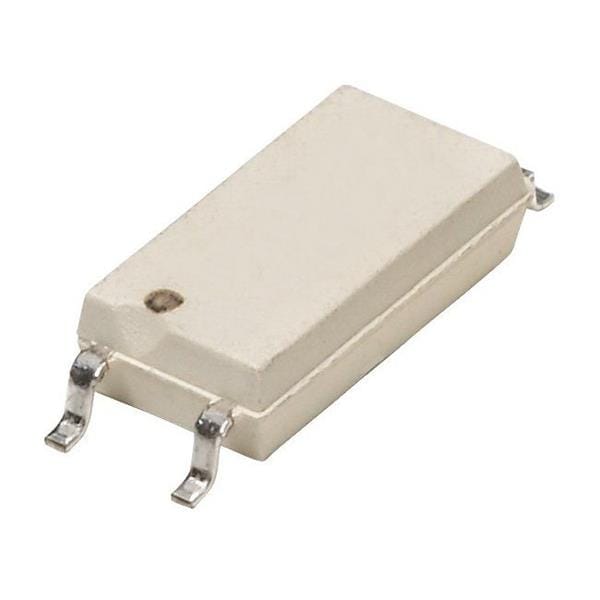

Width: 7.5 mm
Height: 2 mm
Length: 4.1 mm
Fall Time: 4.7 us
Rise Time: 3 us
Output Type: NPN Phototransistor
Unit Weight: 176.095 mg
Configuration: 1 Channel
Mounting Style: SMD/SMT
Isolation Voltage: 5000 Vrms
Number of Channels: 1 Channel
If - Forward Current: 60 mA
Vf - Forward Voltage: 1.6 V
Vr - Reverse Voltage: 6 V
Current Transfer Ratio: 80 %
Pd - Power Dissipation: 250 mW
Maximum Collector Current: 50 mA
Current Transfer Ratio - Max: 160 %
Current Transfer Ratio - Min: 80 %
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 55 C
Maximum Collector Emitter Voltage: 80 V
Maximum Collector Emitter Saturation Voltage: 300 mV
