Rotation speed: 150rpm-4000rpm (adjustable)
Motor: AC Servo Motor
Fatigue type specimen: Cantilever beam type
Beaning moment: Up to 100N.m
Weights: Up to 200N (Other capacity can be provide upon the request)
Testing Times: 0-999999
Specimen length: 100-200mm (other length can be requested)
Specimen diameter: Ф10-Φ20mm
Parallelism: ≤0.05mm
Bend load arm: 50-100mm ( (other can be requested)
Display: Testing times, speed
Dimension: 1050*400*1100mm
Weight: 350kgs

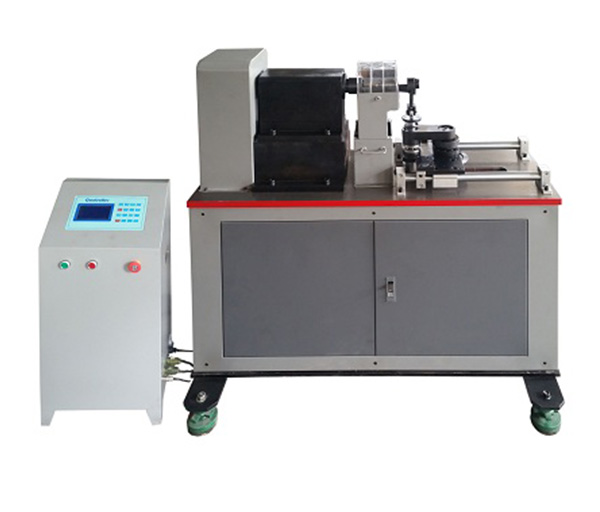

Product Description: A test piece mounted as a cantilever with single point loading is made to rotate and thus subjected to a bending moment.
Test Standards: ISO/DIS 1143
Product Features:
Adopt micro-processor control, real time display rotation times, automatic stop when specimen broken or reach preset testing time, testing results can be stored and printed out. Adopt AC servo motor, running steady, a set calibrated weights will be provided, LCD screen set circle times and speed.
Bearing: special ball bearing, clearance adjusted for axial and longitudinal guide.
Coupling system: flexible coupling.
Protection: with protection cover, over current protection, over voltage protection, overload protection..etc.
