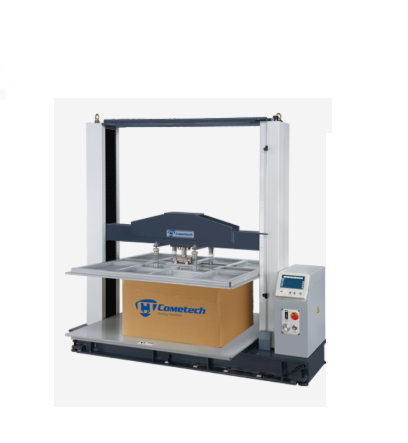

Cometech QC-121D1 Carton Compression tester

  • Manufacturer: Cometech
    Model: QC-121D1
    Origin: Taiwan
    Guarantee: 12 month
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacturer: Cometech

Model: QC-121D1

Origin: Taiwan

Warranty: 12 months

Model:   QC-121D1 (A type)/QC-121D1 (B type)/QC-121D1 (C

 type)/QC-121D1 (D type)

Test space:   100×100×90 cm(A type)/120×120×100 cm(B

 type)/100×100×90 cm(C type)/120×120×100 cm(D type)

Max.capacity:   2000 kg(A type)/2000 kg(B type)/5000 kg(C

 type)/5000 kg(D type)

Units exchange:   Force: gf, kgf, lbf, N, kN, ozf, tonf(SI),

 ton(long), tonf(short) Stress: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg

Force resolution:   23 bits

Force precision:   1/10,000

Stroke resolution:   0.00125mm

Speed range:   10 ~ 200mm/min(digital DIP Switch)

PC-port:   TCP/IP

Data sample rate:   1200hz(Max.)

Hardware safety protection:   upper limit, lower limit, emergency stop

Motor Type:   DC motor

Dimension:   159×100×170cm(A type)/179×120×176 cm(B

 type)/159×100×170 cm(C type)/179×120×176 cm(D


Weight:   800 kg(A type)/900 kg(B type)/850 kg(C type)/950

 kg(D type)

Máy kiểm tra độ chịu lực thùng Carton Cometech QC-121D1
