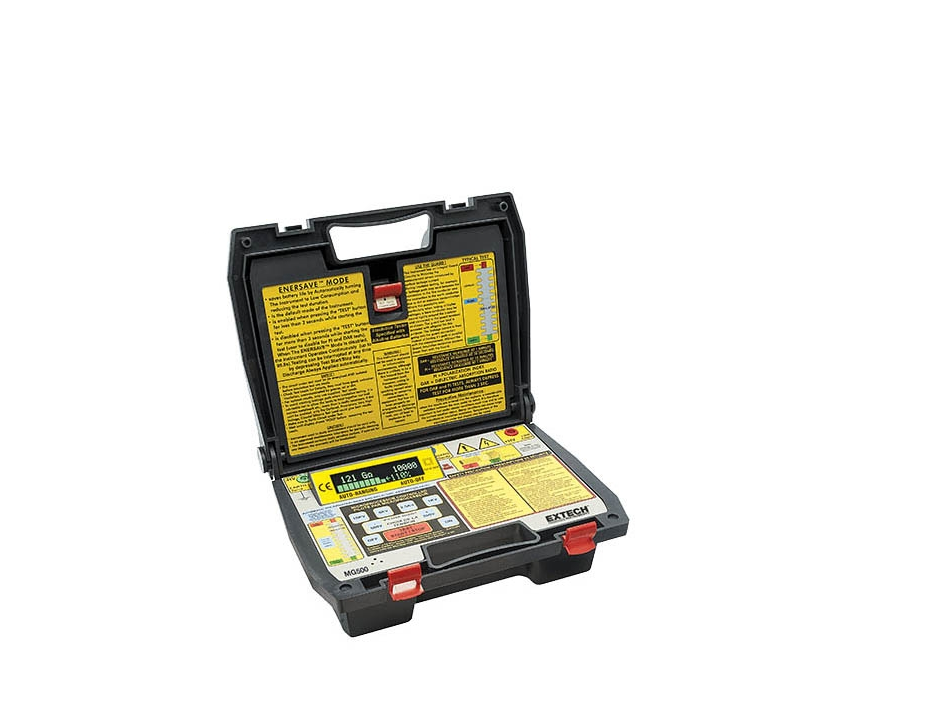

EXTECH MG500 Digital High Voltage Insulation Tester (800kΩ~500GΩ, 500VDC to 10kVDC)
Manufacturer: EXTECH Model: MG500 Origin: Taiwan - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
- Insulation Resistance: 800kΩ to 500GΩ ( Autoranging )
- Resolution: 1kΩ
- Basic Accuracy: ±5%
- Test Voltages: 500VDC to 10kVDC (adjustable in 500V steps)
- Preset Buttons: 1kV, 2.5kV, 5kV, 10kV
- Polarization Index : Yes
- Dielectric Absorption Ratio: Có
- Automatic Discharge: Yes
- Dimensions: 13x10.2x6.3" (330x260x160mm)
- Weight: 7.9lbs (3.6kg)
Complete with built-in heavy duty carrying case with cover, test leads, alligator clips, and 8 x C batteries
Details
MG500: Digital High Voltage Insulation Tester
Tests voltage up to 10kV and measures Insulation Resistance to 500GOhm
Features:
- High test voltages up to 10kV with Insulation Resistance to 500GOhm
- Polarization Index (PI) measurement
- Dielectric Absorption Ratio (DAR) measurement
- EnerSave™ limits test duration to 10 seconds to save energy
- Complete with built-in heavy duty carrying case with cover, test leads, alligator clips, and 8 x C batteries
