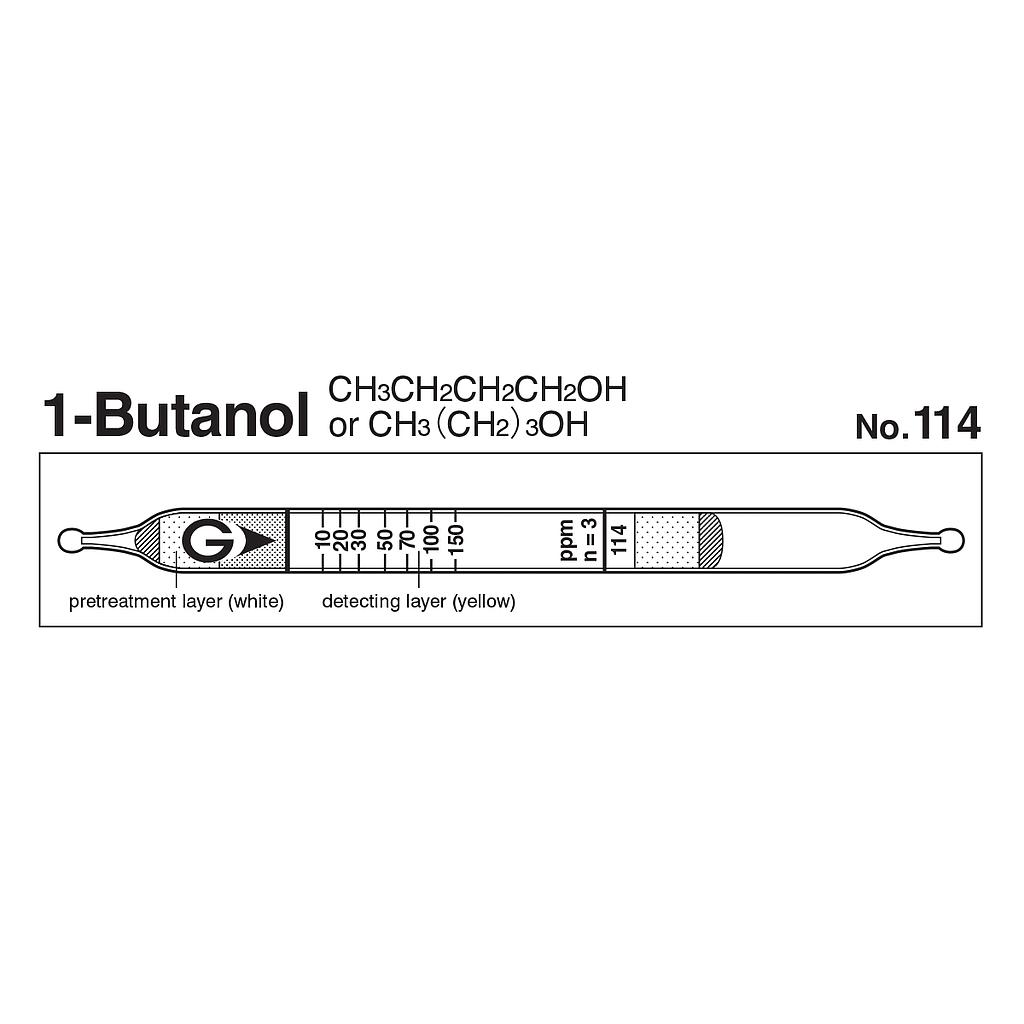

Gastec 114 Quick-measuring Detector tubes 1-Butanol CH3CH2CH2CH2OH (10 ~ 150 ppm)
Manufacturer: Gastec Model: 114 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Indicator: 10 ~ 150 ppm
Measuring Range: 10 ~ 150 ppm, Number of Pump Strokes 3
Sampling Time: 2 minutes per pump stroke
Colour Change: Yellow → Pale blue
Reaction Principle: CH3(CH2)3OH + Cr6++ H3PO4 → Cr3+
Coefficient of Variation: 15% (for 2.5 to 30 ppm), 10% (for 30 to 150 ppm)
Nr. of tests: 10
Pump: GV-100S/110S
Details
Performance
| Measuring Range | 10 to 150 ppm |
| Number of Pump Strokes | 3 |
| Correction Factor | 1 |
| Sampling Time | 2 minutes per pump stroke |
| Detecting Limit | 1 ppm (n=3) |
| Colour Change | Yellow → Pale blue |
| Reaction Principle | CH3(CH2)3OH + Cr6++ H3PO4 → Cr3+ |
| Coefficient of Variation | 15% (for 2.5 to 30 ppm), 10% (for 30 to 150 ppm) |
| Shelf Life | 3 Years |
| Corrections for temperature & humidity | Temperature correction is necessary |
| Store the tubes at cool and dark place. | |
Possible coexisting substances and their interferences (NOTE)
| Substance | Concentration | Interference | Change colour by itself to |
| Alcohols | + | Pale blue |
| Calibration gas generation | Diffusion tube method |
| TLV-TWA | TLV-STEL | Explosive range |
| 20ppm | - | 1.4 to 11.2% |
