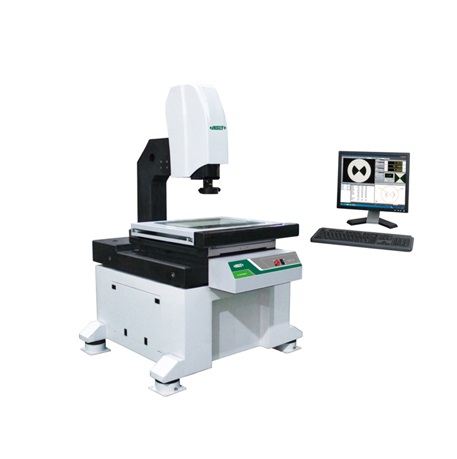

INSIZE ISD-V500N CNC Vision Measuring Systems
Manufacturer: INSIZE Model: ISD-V500N - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Measuring Range (X x Y x Z): 470x370x200mm
Stage Size: 786x636mm
Stage Glass Size: 570x470mm
Resolution of X/Y/Z Axis: 0.5µm
Accuracy of X/Y/Z Axis: <=(2.5+L/100)µm (L is the measuring length in mm)
Repeatability of X/T Axis: 2µm
Objective: 0.7X ~ 4.5X (zoom)
Workign Distance: 92mm
Magnification: 33X ~ 195X (on 19" monitor)
View field (diagonal length: 1.7-11.1mm
Matification: 20X-128X(on 19.5" monitor)
Camera: 1/2" color CCD, o.4M pixel
Illumination:
surface: coaxial Light programmable segmented ring fight
contour: adjustable LED light
Max workpiece height: 200mm
Max workpiece weight: 30kg
Operation system: Windows 7/10
Drive Method: Automatic
Power Supply: 220V, 50/60Hz
Dimension (L x W x H): 1270x1200x1870mm
Weight: 870kg
