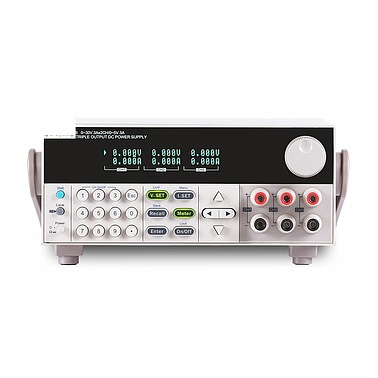

ITECH IT6332A Triple Channels DC power supply (3 channels; 5~30V; 3A, 15~90W)

  • Manufacturer: ITECH
    Model: IT6322A
    Origin: China
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

- Voltage, Current, Power:
+ Channel 1: 30V/3A/90W
+ Channel 2: 30V/3A/90W
+ Channel 3: 5V/3A/15W
- Resolution: 1mV; 1mA
- Accuracy: ≤0.03%+10mV; ≤0.1%+5mA
- Communication interfaces: RS232/USB/GPIB (Optional)
- Size: 1/2 2U

- Load Regulation: ≤0.01%+5mV; ≤0.01%+3mA
- Line Regulation: ≤0.01%+5mV; ≤0.01%+3mA
- Setup Resolution: 1mV; 0.1mA(< 10A)/ 1mA(>=10A)
- Readback Resolution: 1mV; 0.1mA(< 10A)/ 1mA(>=10A)
- Setup Accuracy: ≤0.04%+8mV; ≤0.1%+8mA
- Readback Accuracy: ≤0.04%+8mV; ≤0.1%+8mA
- Ripple(20Hz-20MHz): ≤4mVp-p and 1mVrms; ≤6mArms
- Dynamic recovery time: 100uS
- Dimension (mm):214.5mmW×88.2mmH×354.6mmD
- Communication interfaces: RS232/USB
