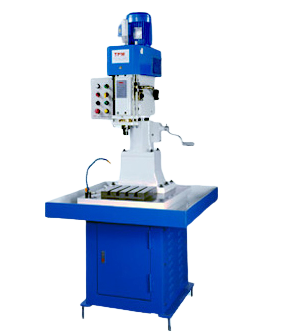

H-7150 Hydraulics Table Drilling machine
Manufacturer: KTK Model: H-7150 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Maximum drilling diameter: 25mm
Spindle cone: MT3/NT30
Major axis travel: 150 mm
Spindle speed (3 levels): 420/830/1250V/P
Stepless speed
Table size: 600 x 800 mm
Head Diameter: 102 mm
K / C from spindle to table: 350-700 mm
Motor power: 2 HP
Hydraulic pressure: 20 kg/cm2
Overall Height: 2100mm
Weight: 600 kg
